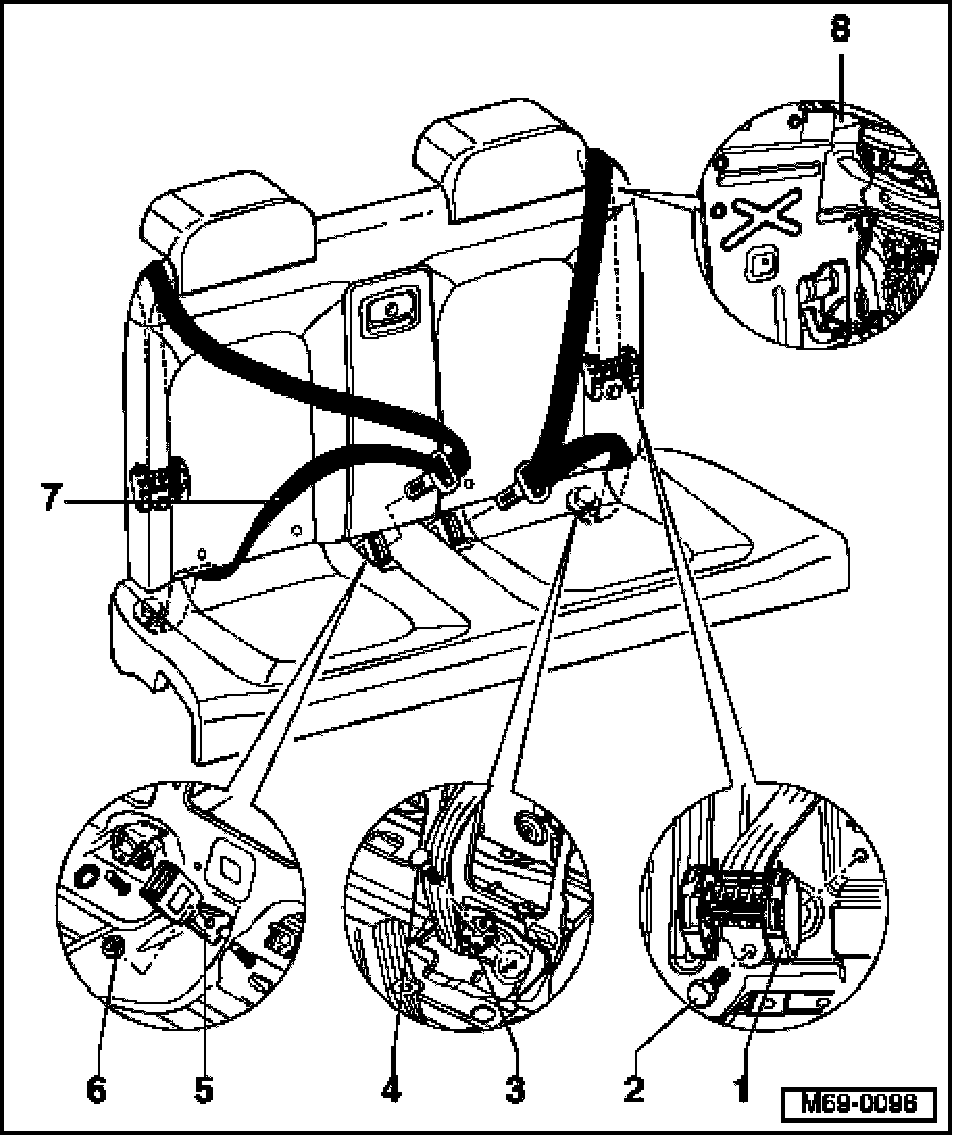

Rear Seat Belt (Convertible), Assembly Overview

Rear Seat Belt (Convertible), Assembly Overview







1. Belt tensioner
- Retaining lugs determine position of belt inertia belt
- Removing:
- Remove rear backrest.
Remove screw -2-.
- Remove anchorage -3-.
- Guide belt through relay anchorage -8-.
2. Hex bolt
- 40 Nm
3. Anchorage
- Guide lug determines position
- Removing:
- Remove side panel trim.
- Remove screw -4-.
4. Hex bolt
- 40 Nm
5. Rear seat belt buckle
6. Nut
- 40 Nm
7. Belt
8. Belt relay anchorage
- Belt must be guided through rear panel from bottom to top when installing.
