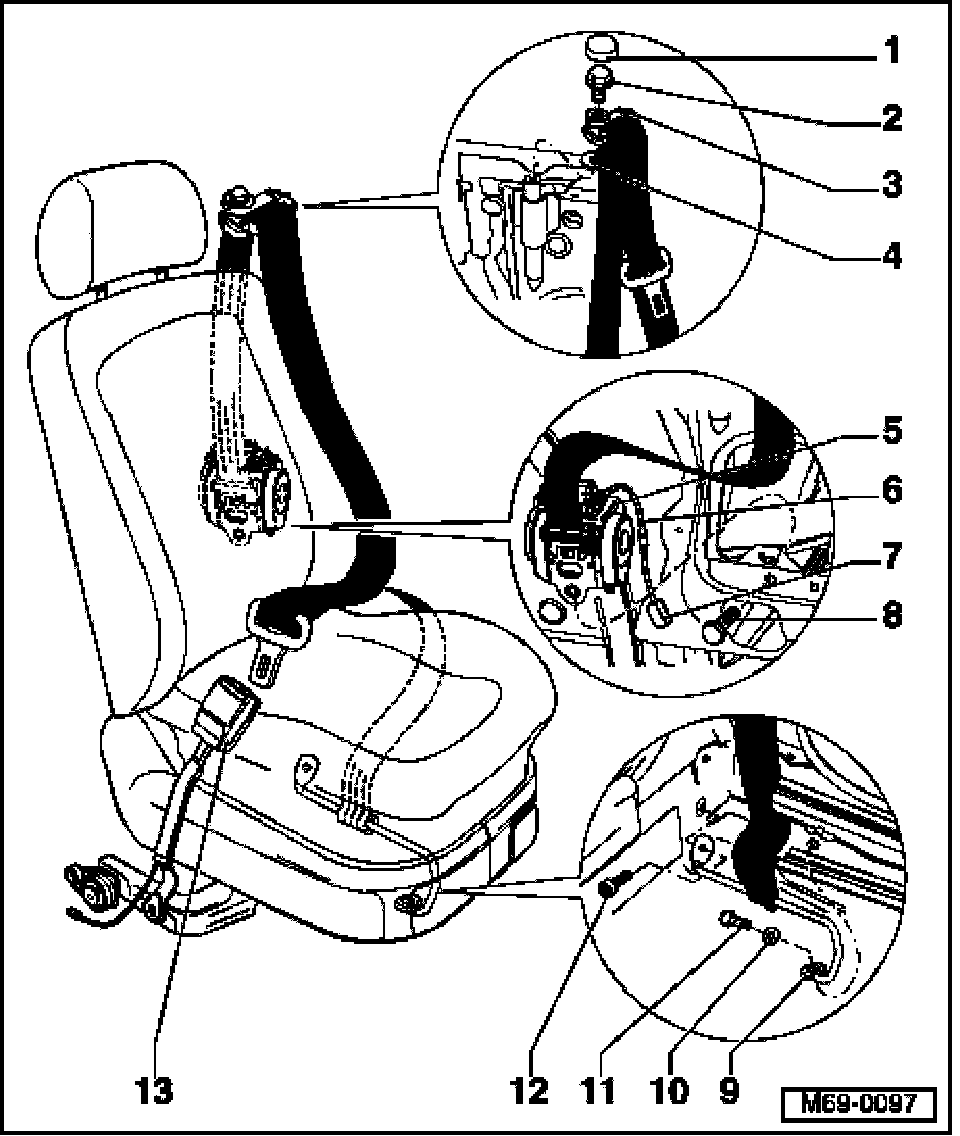

Front Seat Belt With Belt Tensioner (Convertible), Assembly Overview

Front Seat Belt With Belt Tensioner (Convertible), Assembly Overview







WARNING: Belt tensioner unit must be removed before commencing separating, straightening and panel repair work.

1. Cover cap
2. Hex bolt
- 40 Nm
3. Belt relay
4. Washer
5. Seat belt with belt tensioner
- To remove, first remove side panel trim.
- Retaining lug determines position of belt inertia belt.
- Disposal of old components that have not ignited (triggered) is carried out by distribution center or manufacturer.
- Removing:
- Remove side panel trim.
- Remove socket head screw -12-.
- Remove hex bolt -11-.
- Remove hex bolt -2-.
- Disconnect connector -7-.
- Remove hex bolt -8-.
6. Connector wiring
7. Connector
8. Hex bolt
- 40 Nm
- Loosening hexagon bolt -11- makes belt tensioner safe and tightening returns belt tensioner to a functional condition (not valid for electrical belt tensioner).
9. Anchor rail
- Seat belt must be guided through side panel first.
10. Washer
11. Hex bolt
- 40 Nm
12. Socket head screw
- 23 Nm
13. Front seat belt buckle
- With interrogation of seat belt buckle.
