Front Passenger Airbag Unit, Assembly Overview

Front Passenger Airbag Unit, Assembly Overview

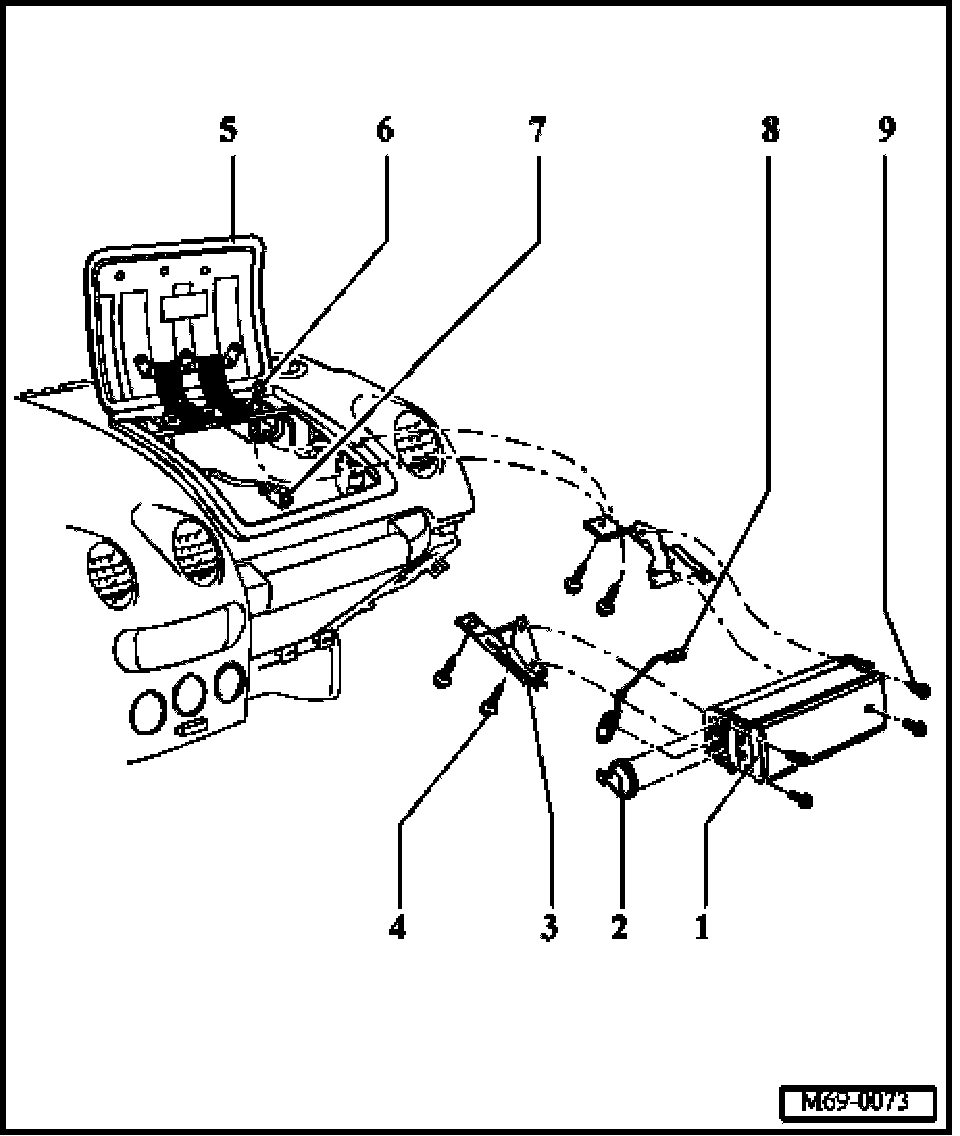

1. Passenger airbag unit with airbag igniter 1, passenger's side -N131- and air bag igniter 2, passengers side -N132-
2. Cover for harness of passenger airbag unit
3. Support
- Must be replaced if airbag has triggered/deployed
4. Bolt
- 12 Nm (9 ft lb)
5. Cover
6. Bolt
- 4 Nm (35 in.lb)

NOTE: If these bolts are removed instrument panel cover on front passenger's side must be replaced.

7. Connector
- to harness of passenger airbag unit, item 8
8. Harness of passenger airbag unit
- Attached to passenger airbag unit
- to connector, item 7
9. Bolt
- 12 Nm (9 ft lb)
