09G Transmission

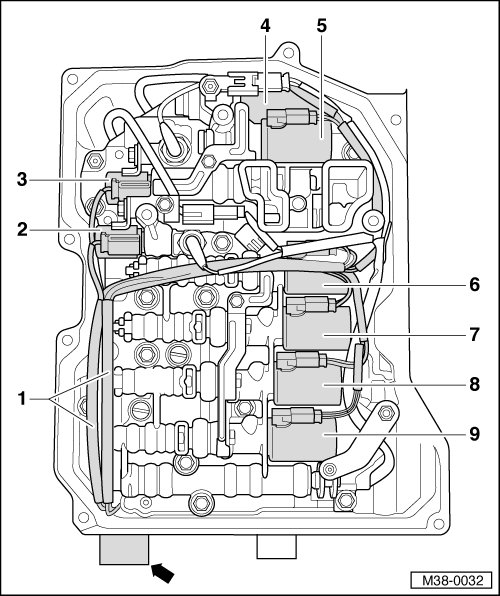

Solenoid Valve Identification
1 Wiring harness with 14-pin connector - arrow - for solenoid valves
2 Solenoid Valve 1 (N88)
3 Solenoid Valve 2 (N89)
4 Solenoid Valve 4 (N91)
5 Solenoid Valve 6 (N93)
6 Solenoid Valve 5 (N92)
7 Automatic Transmission Pressure Regulating Valve 4 (N218)
8 Automatic Transmission Pressure Regulating Valve 6 (N371)
9 Automatic Transmission Pressure Regulating Valve 5 (N233)
