Fuel Supply System Components, Removing and Installing

Fuel Supply System Components, Removing And Installing

NOTE:
- Hose connections are secured with screw-type clamps, spring-type clamps or tensioning clamps.
- Always replace tensioning clamps with spring-type clamps or screw-type clamps.
- Fuel hoses at engine must only be secured with spring-type clamps. The use of clamping collars or screw clamps is not permitted.

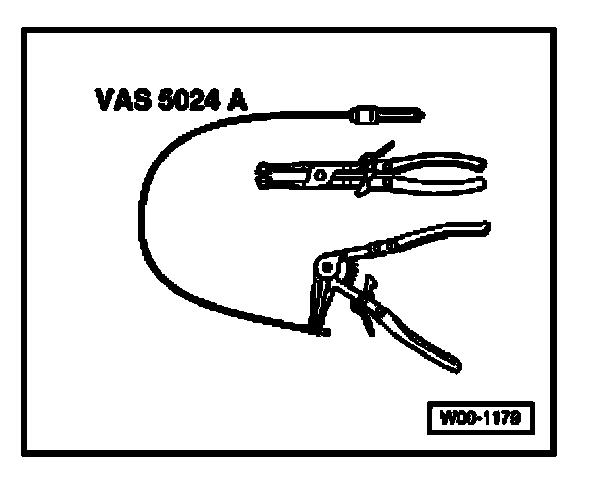

- VAS 5024A spring clip installation tool is recommended for installing spring-type clips.
