Diagnostic Mode 5: Check Output of Oxygen Sensor Signals



Diagnostic Mode 5: Check Output Of Oxygen Sensor Signals

Function
The static values of the oxygen sensors are indicated via this diagnostic mode.

The values of the individual oxygen sensor test results must reach the specified value or must be within the min.- and max.- limits.

Requirements
- Exhaust system must be properly sealed between catalytic converter and cylinder head.
- There must not be any DTCs stored in DTC memory. Diagnostic mode 3: Check DTC memory. Diagnostic Mode 3: Check DTC Memory
- Coolant temperature must be at least 80 degrees C. Diagnostic mode 1: Check measured values; PID 5, Coolant temperature. Diagnostic Mode 1: Check Measured Values

Work procedure
- Connect diagnostic tester. Diagnostic Tester, Connecting
- Start engine and let run at idle.
- Under address word 33, select "Diagnostic mode 5: Check output of oxygen sensor signals".

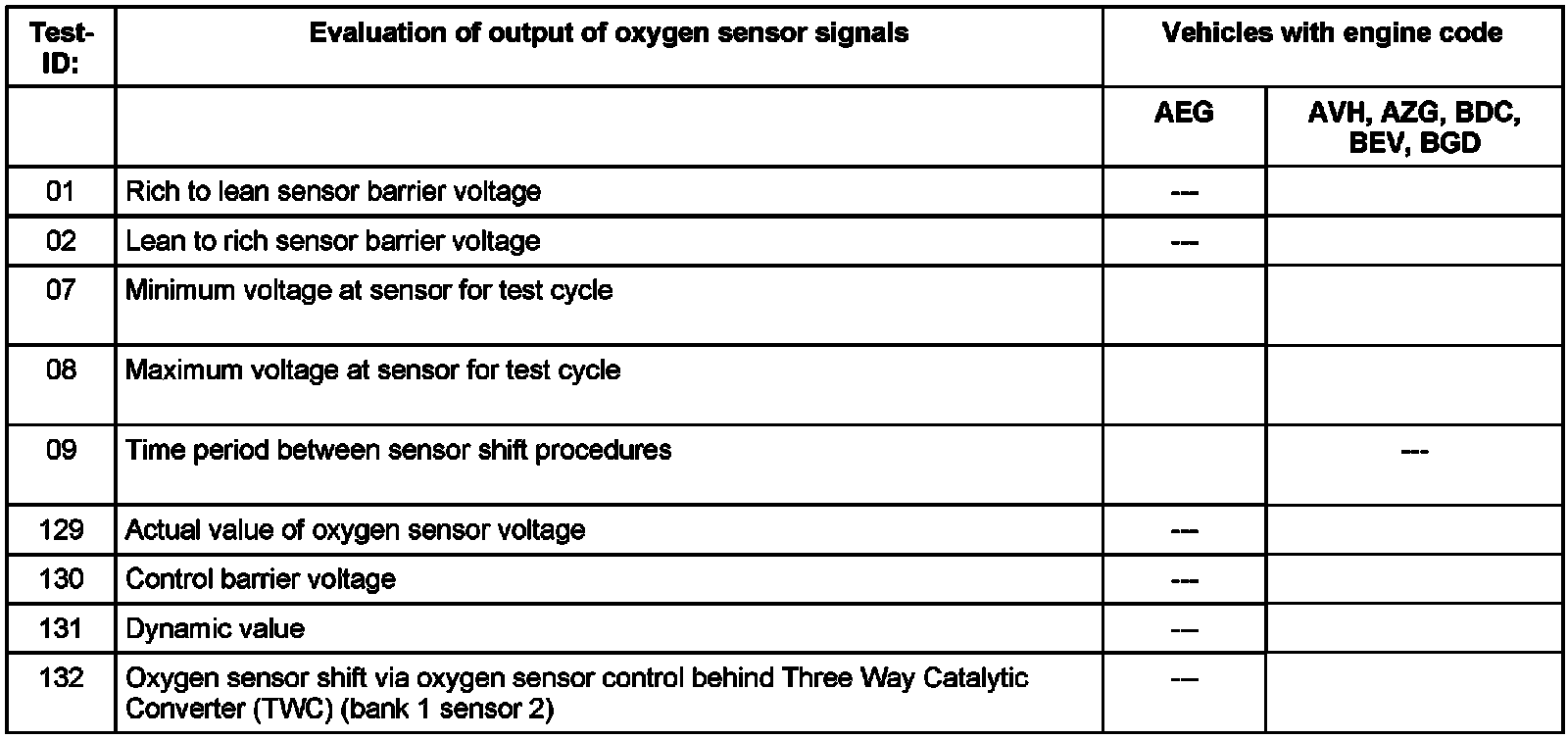

- Select desired output of oxygen sensor signals "Test-ID XX".







NOTE:
- When selecting the diagnostic mode, the entry is always performed in "Bank 1 sensor 1".
- If either the V.A.G 1551/1552 Scan Tool (ST) or the VAS 5051/5052 Vehicle Diagnostic, Testing and Information System is used for checking the output of oxygen sensor signals, the respective oxygen sensor can be selected by pressing buttons 1 and 2:

- Button 1 = Bank 1 sensor 1,
- Button 2 = Bank 1 sensor 2.
- End diagnosis and switch ignition off.

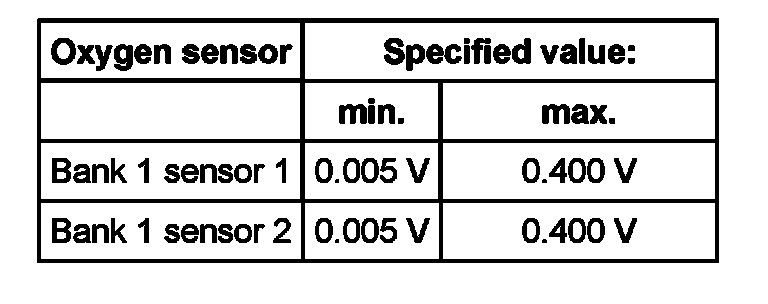

Evaluation test-ID 07: Minimum voltage at sensor for test cycle (Vehicles with engine code AEG)







If specified value is not reached:
- Short circuit to Ground (GND) in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Before Catalytic Converter, Checking
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking

If specified value is exceeded:
- Oxygen sensor not ready for operation
- Oxygen sensor heater faulty:
- Check oxygen sensor heater for Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Before Three Way Catalytic Converter (TWC), Checking
- Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking

- Short circuit to B+ or open circuit in wiring in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Before Catalytic Converter, Checking
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking

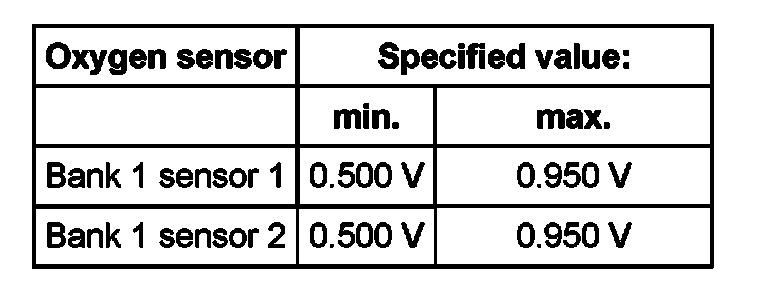

Evaluation test-ID 08: Maximum voltage at sensor for test cycle (Vehicles with engine code AEG)







If specified value is not reached:
- Oxygen sensor not ready for operation
- Oxygen sensor heater faulty:
- Check oxygen sensor heater for Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Before Three Way Catalytic Converter (TWC), Checking
- Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking

- Short circuit to Ground (GND) or open circuit in wiring in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Before Catalytic Converter, Checking
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking

If specified value is exceeded:
- Short circuit to B+ in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Before Catalytic Converter, Checking
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking

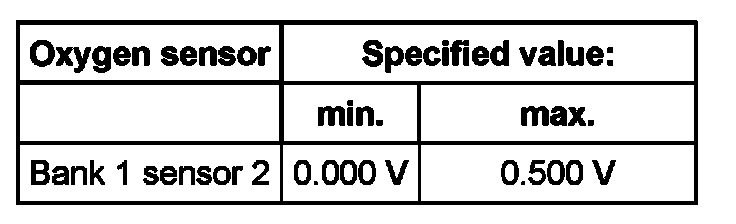

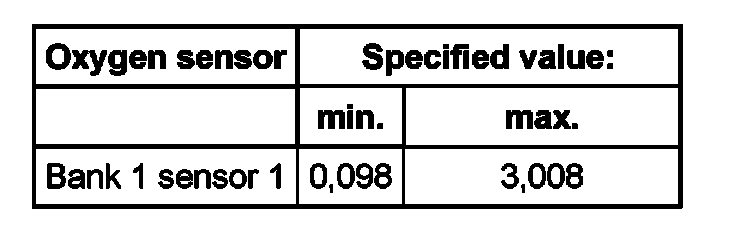

Evaluation test-ID 09: Time period between sensor shift procedures (Vehicles with engine code AEG)







If specified value is exceeded:
- Oxygen sensor faulty:
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Before Catalytic Converter, Checking

Evaluation test-ID 01: Rich to lean sensor barrier voltage (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)


Oxygen Sensor Specified Value
Bank 1 sensor 2 smaller than 0.600 V

If specified value is not obtained:
- Replace Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

Evaluation test-ID 02: Lean to rich sensor barrier voltage (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)

Oxygen Sensor Specified Value
Bank 1 sensor 2 larger than 0.600 V

If specified value is not obtained:
- Replace Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G130-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

Evaluation test-ID 07: Minimum voltage at sensor for test cycle (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)







If specified value is exceeded:
- Oxygen sensor not ready for operation
- Oxygen sensor heater faulty:
- Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC).

- Short circuit to B+ or open circuit in wiring in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking

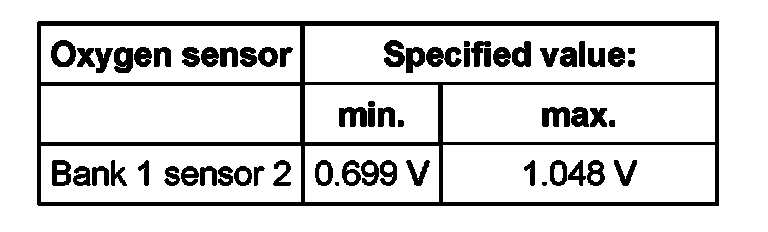

Evaluation test-ID 08: Maximum voltage at sensor for test cycle (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)







If specified value is not reached:
- Oxygen sensor not ready for operation
- Oxygen sensor heater faulty:
- Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking

- Short circuit to Ground (GND) or open circuit in wiring in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking

If specified value is exceeded:
- Short circuit to B+ in oxygen sensor or in wire:
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC). Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking

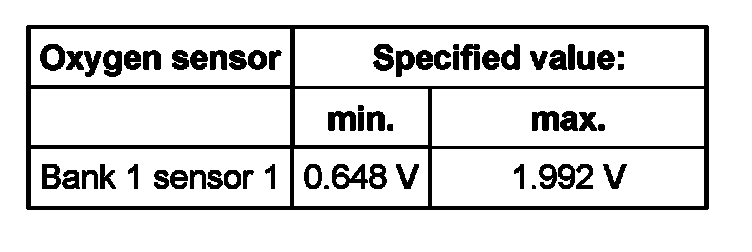

Evaluation test-ID 129: Actual value of oxygen sensor voltage (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)







If specified values are not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

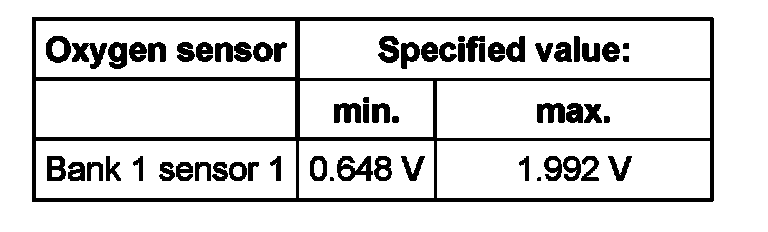

Evaluation test-ID 130: Control barrier voltage (Vehicles with engine code AVH, AZG, BDC, BEV, BCD)







If specified values are not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

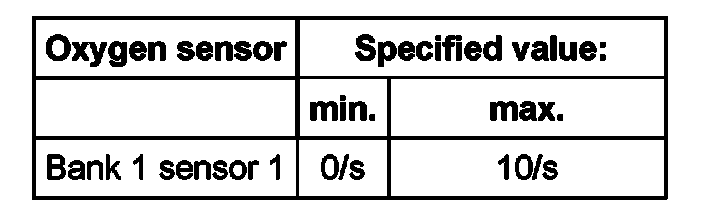

Evaluation test-ID 131: Dynamic value (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)







If specified values are not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

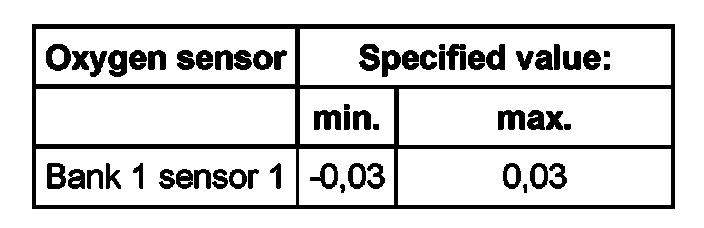

Evaluation test-ID 132: Oxygen sensor shift via oxygen sensor control behind Three Way Catalytic Converter (TWC) (bank 1 sensor 2) (Vehicles with engine code AVH, AZG, BDC, BEV, BGD)







If specified values are not obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39-.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
