Relay Panel and 13-Position Relay Panel, Removing and Installing

Relay Panel and 13-Position Relay Panel, Removing and Installing

Removing
- Disconnect battery.
- Remove lower instrument panel trim on driver's side.

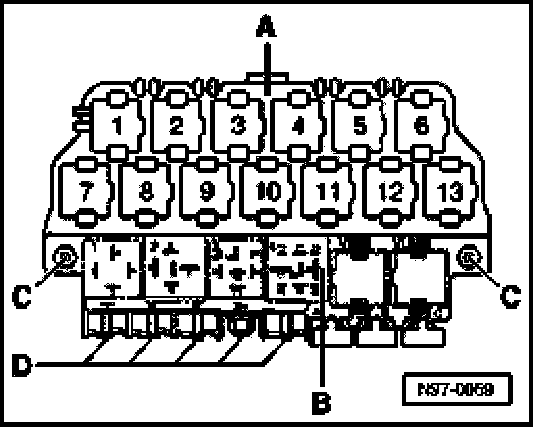

- Remove both securing screws -C- (2 Nm) and loosen all bolted connections -D- as necessary.
- Remove relay panel -B- and relay panel -A- downward.

Installing
- Install in reverse order.
