Fluid Filter - A/T: Service and Repair

Oil strainer, removing and installing, 09G, 6 Spd. A/T

Removing
- Remove oil pan.

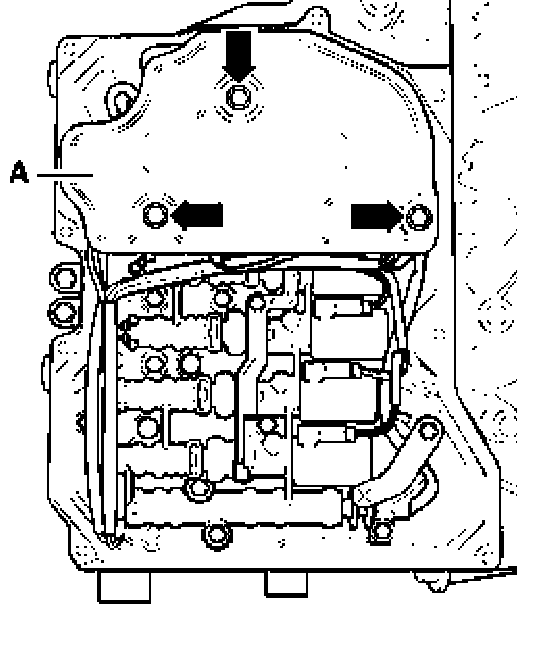

- Remove bolts and remove oil strainer - arrows -.
- Pull oil strainer - A - off valve body.

Installing
- Moisten oil seals on intake union of oil strainer with ATF.

Note: If the oil seals are loose or faulty replace the oil strainer.

- Position oil strainer - A - on valve body and secure - arrows -.
- Install oil pan.
- Fill with ATF, check ATF level and top up.
