Vanity Lamp: Service and Repair

Make-Up Mirror Light -W14-/-W20-, Removing and Installing

NOTE: The procedures for removing left make-up-mirror light -W20- and right make-up mirror light -W14- are identical.

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

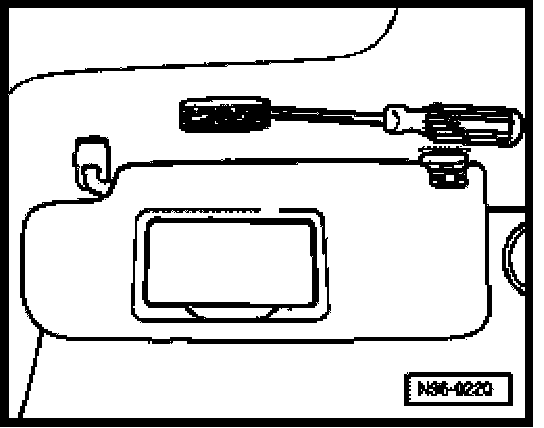

- Insert screwdriver behind lens and carefully pry lens out.
- Remove lens with bulb holder.
- Disconnect electrical connection.
- Replace 12 V/3 W bulb.

Installing
- Connect electrical connection.
- Insert lens with bulb holder into headliner and engage properly.
