Front Turn Signal Lights, Removing and Installing



Front Turn Signal Lights, Removing and Installing

Removing
- Bring lock carrier into service position
- Disconnect electrical connection to turn signal housing.

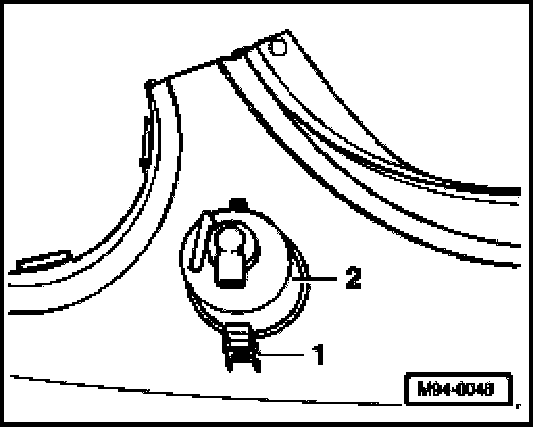

- Remove screw -1- and swing turn signal housing -2- out of mounting.

Installing
Install in reverse order of removal.
