Door Warning Light or Reflector, Removing and Installing

Door Warning Light or Reflector, Removing and Installing

Removing
- Remove door panel trim.







- Disconnect electrical connection where applicable.

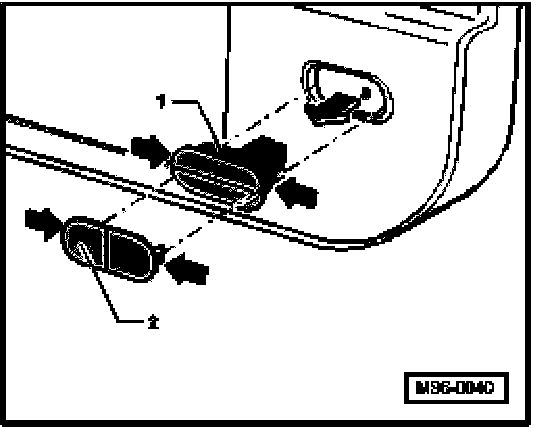

- Remove light module -1- or plastic reflector -2- by depressing both retainers -arrows- and sliding out direction of -arrow A-.

Installing
- Insert light module or plastic reflector into holder and engage.
- Reconnect electrical harness connection.
