Rear Side Marker Light Bulb, Replacing

Rear Side Marker Light Bulb, Replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove rear inner fender liner.

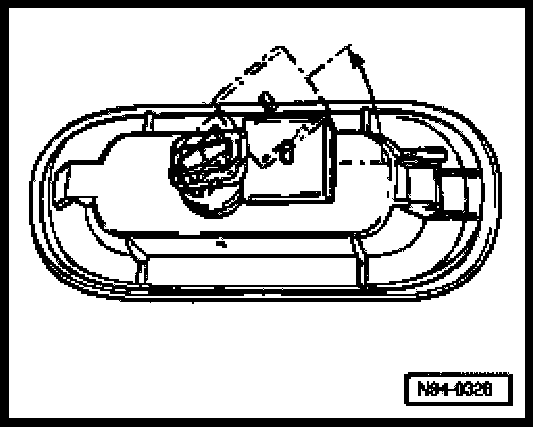

- Turn bulb holder in direction shown -arrow- and pull out from housing.
- Pull out bulb (12 V/5 W), do not turn.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Install in reverse order of removal.

NOTE: When installing, make sure bulb holder engages in housing by turning in opposite direction shown -arrow-.
