Front Side Marker Light Bulb (Turbo S), Replacing

Front Side Marker Light Bulb (Turbo S models only), Replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove front inner fender liner.

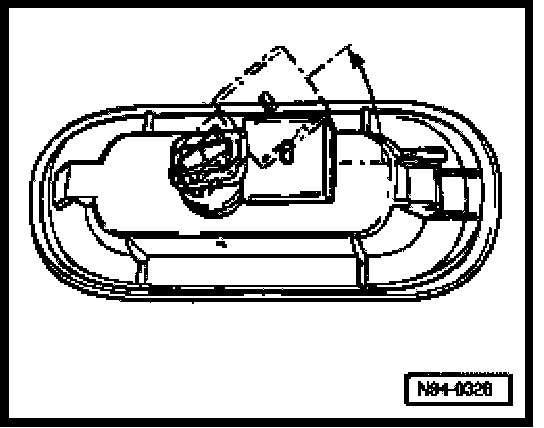

- Turn bulb holder in direction of -arrow- and pull out from housing.
- Pull out bulb, do not turn.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation, can cause the glass to cloud over.

- Install in reverse order of removal.

NOTE: When installing, ensure bulb holder engages fully in housing, and turn in opposite direction of removal.
