Fog/Driving Lamp Bulb: Service and Repair



Fog Lamp Bulb, Replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

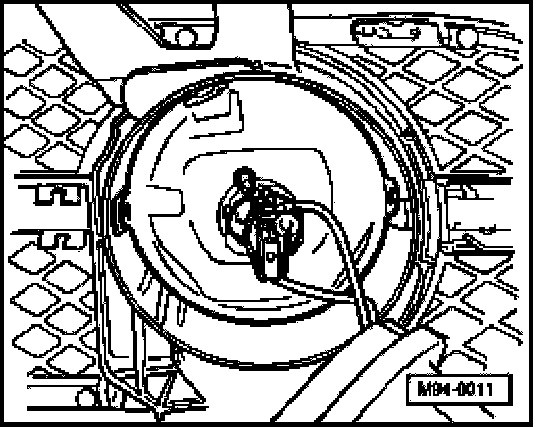

- Disconnect electrical connection at fog lamp assembly.
- Turn sealing cap on rear of assembly and remove.







- Disconnect electrical connection from fog lamp bulb.
- Release spring retaining clip.
- Remove bulb from reflector.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation, can cause the glass to cloud over.

- Insert new bulb so lugs on plate align with grooves in reflector.
- Connect electrical connection to bulb and reinstall cap, on assembly.
- Connect electrical connection to fog lamp assembly.
- Check fog lamp aim.
