Glove Box Lamp: Service and Repair

Glove Compartment Light -W6-, Removing and Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

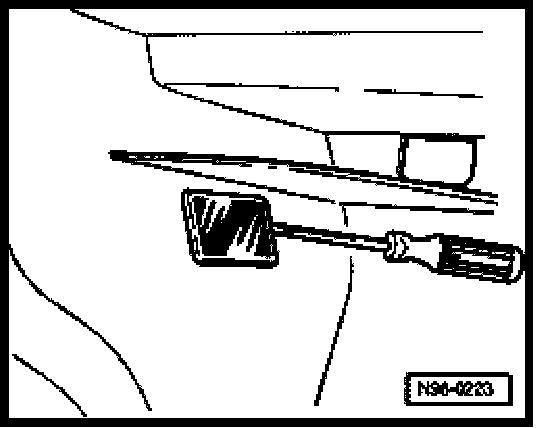

- Insert screwdriver behind lens and carefully pry lens out.
- Remove lens with bulb holder.
- Disconnect electrical connection.
- Replace 12 V/3 W bulb.

Installing
- Connect electrical connection.
- Insert lens with bulb holder into glove compartment and engage properly.

After working on the glove compartment light, a functional check of the switch must be carried out.

With glove compartment closed, the light must not come on.
