Backup Light Bulb: Service and Repair

Back-Up Light Bulb, Replacing

Removing
- Remove back-up light.

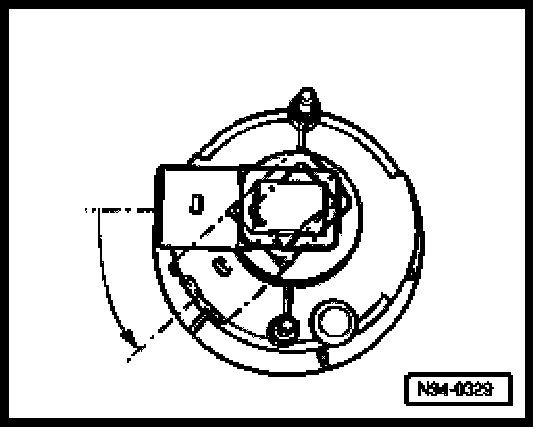

- Turn bulb holder in direction shown -arrow- and pull out from housing.
- Remove bulb from holder.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Install in reverse order of removal.

NOTE: When installing, make sure bulb holder engages in housing by turning in opposite direction shown -arrow-.
