Reading

Read Measuring Value Block (Function 08)

The measuring value block is divided into 4 display groups. The assignment of the individual display fields can be taken from the display group overview. Evaluating Measured Value Block

Use this function to observe various instrument cluster inputs.
- Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition and input address word 17 "Instrument cluster".

After control module identification and immobilizer identification number are displayed:

- Press -> button.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -8- to select function 08 "Read measuring value block".

Indicated on display:

Rapid data transfer Q
08 - Read Measuring Value Block

- Press -Q- button to confirm input.

Indicated on display:

Read Measuring Value Block Q
Enter display group number XXX

- Using the Scan Tool (ST) button pad, enter required display group number (following example shows display group 001).Press keys 0, 0 and 1 for "Display group number 1" and press -Q- button to confirm input.

Indicated on display: (1...4 = Display zones)

Read Measuring Value Block 1 ->
1 2 3 4

NOTE:
- Interpreting display groups and evaluating measured values in individual display fields.
- With printer switched on, information on display is printed out.

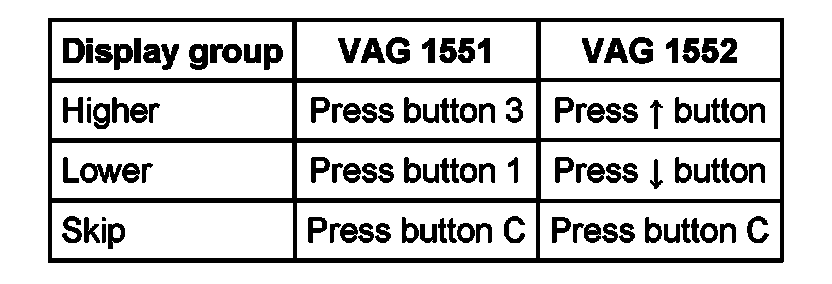

- To easily change between display groups, proceed as follows:







- Displayed after pressing -C- button.

Indicated on display:

Read Measuring Value Block Help
Enter display group number XXX

- Enter display group number as needed.

NOTE:
- Display fields always show actual values transmitted from senders and sensors. However, instrument cluster display values can differ from those in the display fields due to internal filtering.
- Other display groups are possible, but are not required for On Board Diagnostic program
