Intake Manifold Upper Part, Disassembling and Assembling

Intake Manifold Upper Part, Disassembling And Assembling (Vehicles With Engine Code AEG, AVH, AZG, BEV)

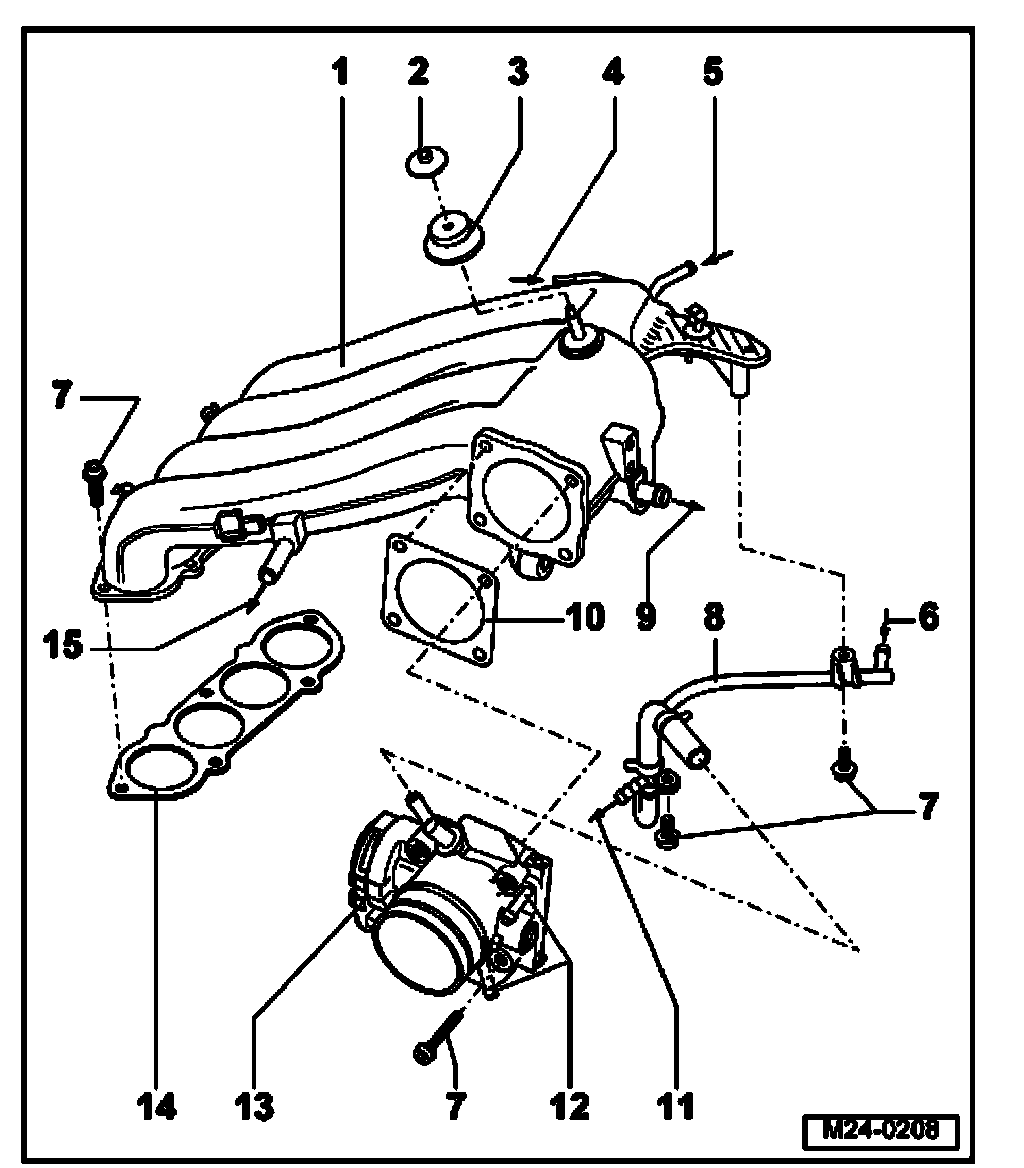

1. Upper section of intake manifold
2. 6 Nm
3. Rubber bushing
- For engine cover
4. From fuel pressure regulator
5. From Leak Detection Pump (LDP) -V144-
6. From Evaporative Emission (EVAP) canister purge regulator valve -N80-
7. 10 Nm
8. Connection tube
9. To vacuum line, brake booster
10. Gasket
- Always replace
11. To intake hose
12. Connections for coolant hoses
13. Throttle valve control module -J338-*
- Terminals of sensor and connector are gold-plated
14. Gasket
- Always replace
15. Connecting piece
Vehicles with engine code AVH, AZG
- As of model year 2002 for vehicles with engine code AVH, AZG, BEV
Vehicles with engine code BEV
- To molded hose for cylinder head cover or intake hose.
