Intake Manifold Lower Part, Disassembling and Assembling

Intake Manifold Lower Part, Disassembling And Assembling (Vehicles With Engine Code BEV)

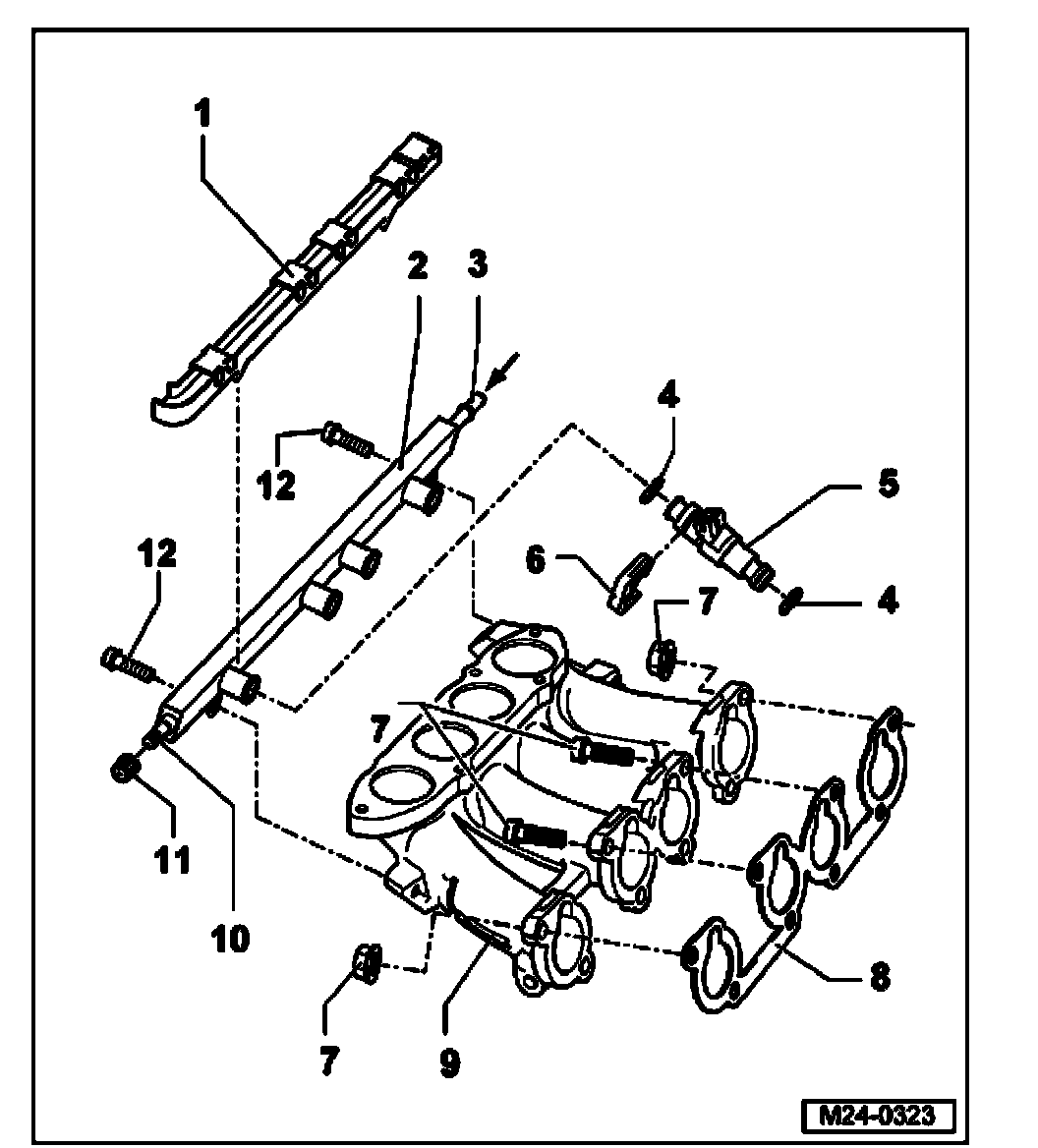

1. Wire routing
- Clipped onto fuel distributor
2. Fuel rail
- With bleeder valve for fuel supply system.
3. Connection, supply line
4. O-ring
- Replace if damaged
- Lightly lubricate O-rings with clean engine oil before installing
5. Fuel injectors (-N30- through -N33-)
6. Retaining clip
- Make sure clip is correctly seated on fuel injector and fuel rail
7. 20 Nm
8. Gasket
- Always replace
9. Lower section of intake manifold
10. Vent valve
- For fuel supply system
- Bleed fuel system.
11. Sealing cap
12. 10 Nm
