Home >> Volkswagen >> 2005 >> New Beetle Convertible (1Y1) L4-2.0L (BEV) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Master Diagram Index - Sedan >> Sensors and Switches Only

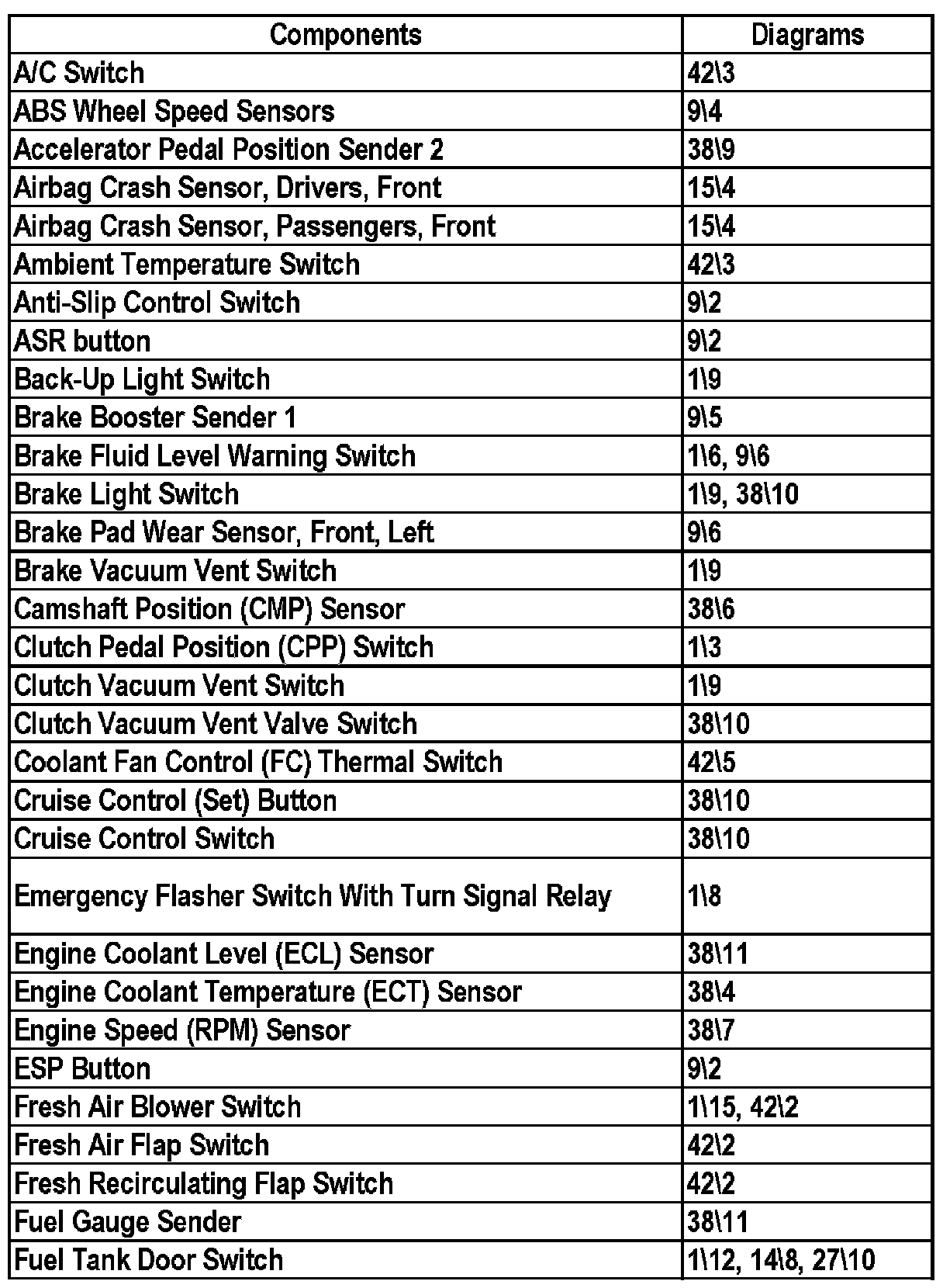

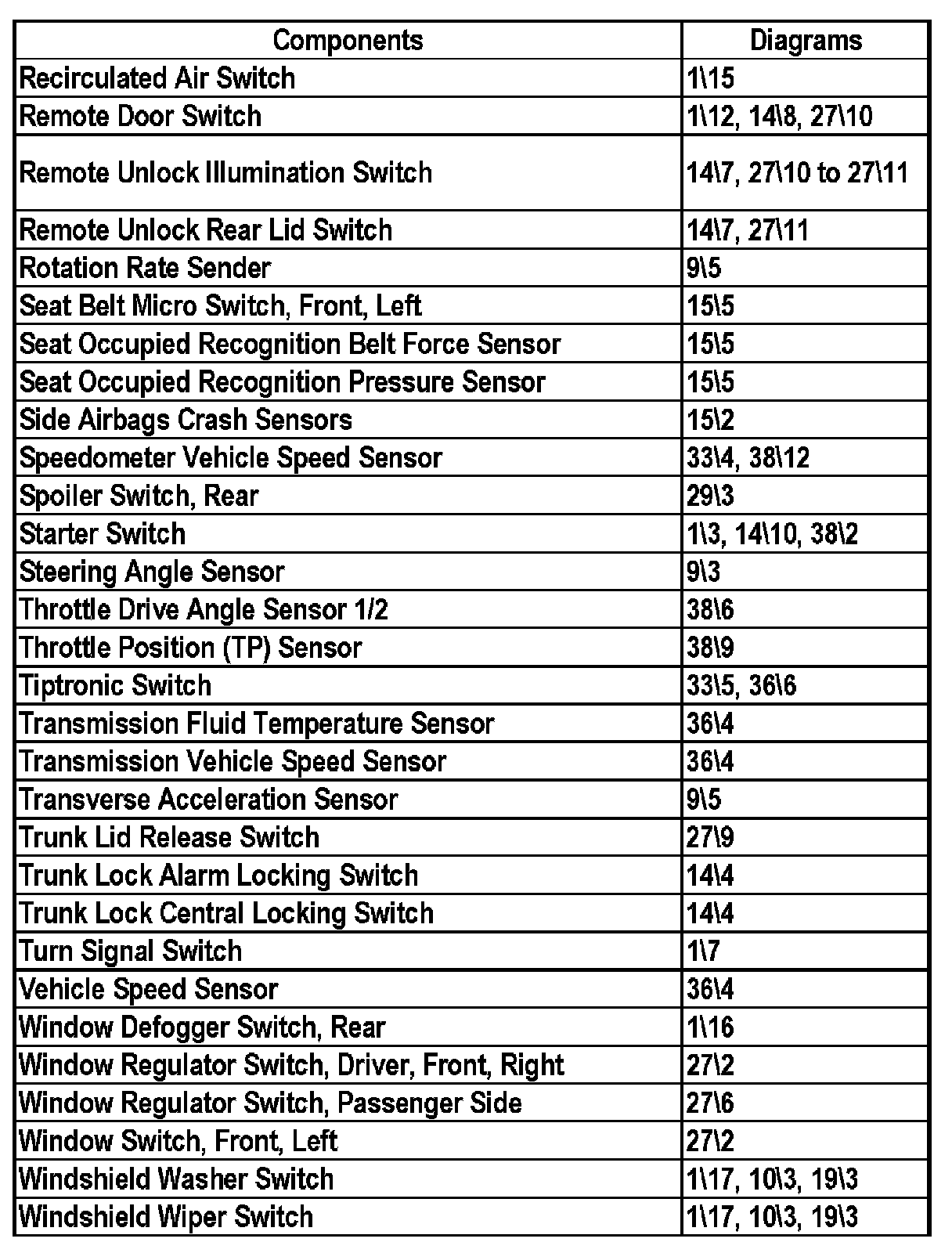

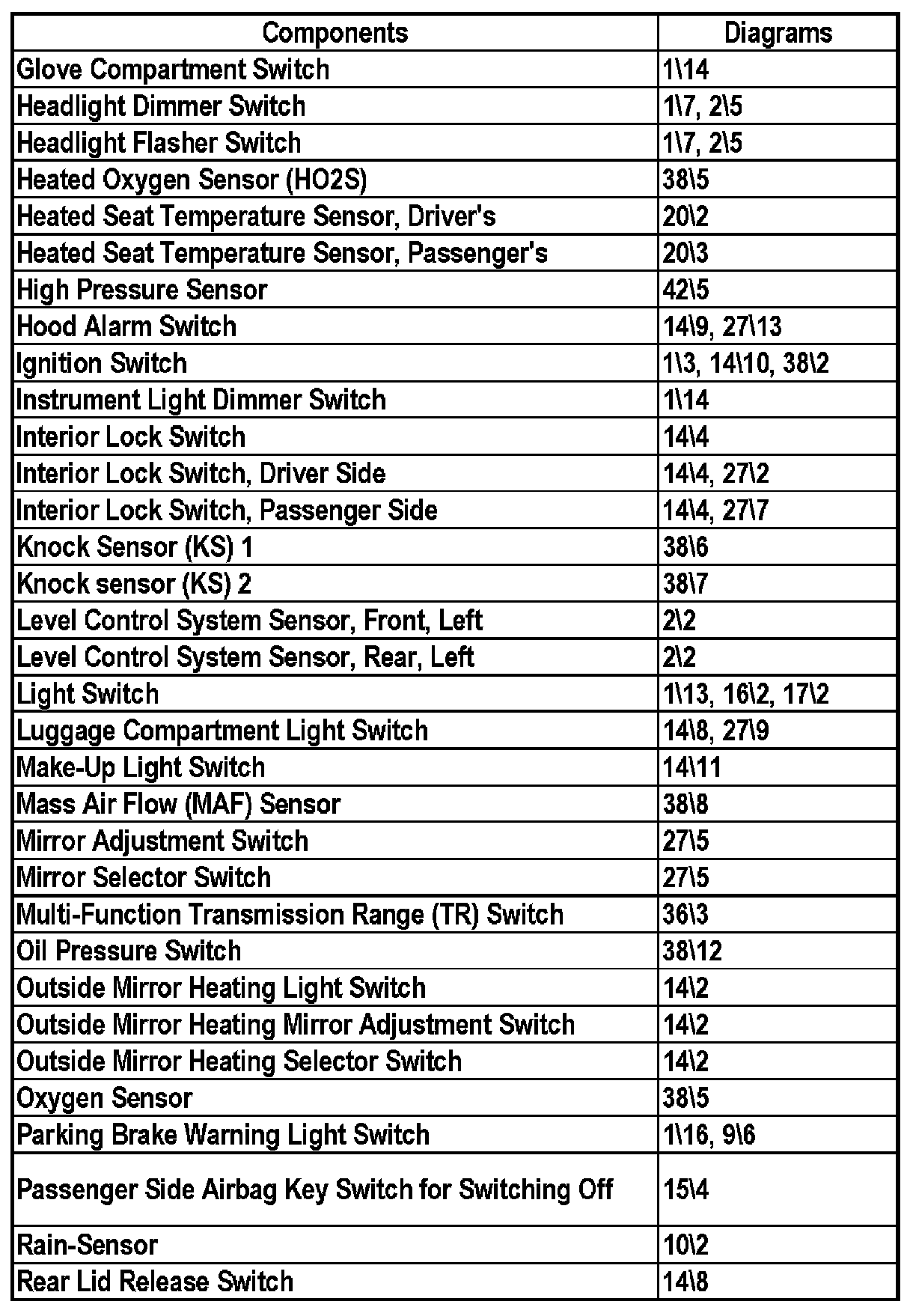

Sensors and Switches Only
