Brake System Vacuum Pump V192, Electrical Check

Brake System Vacuum Pump V192, vehicles from 06.02, electrical check
^ Hand multimeter V.A.G1526B
^ Adapter V.A.G1598/31

Requirements
^ Fuse no. 51 must be OK (to check, remove fuses from fuse holder).





- Disconnect 6-pin connector.

Multi-pin connections with contact assignment

Note:
^ All contacts not listed are currently not assigned and must never be connected to other components!

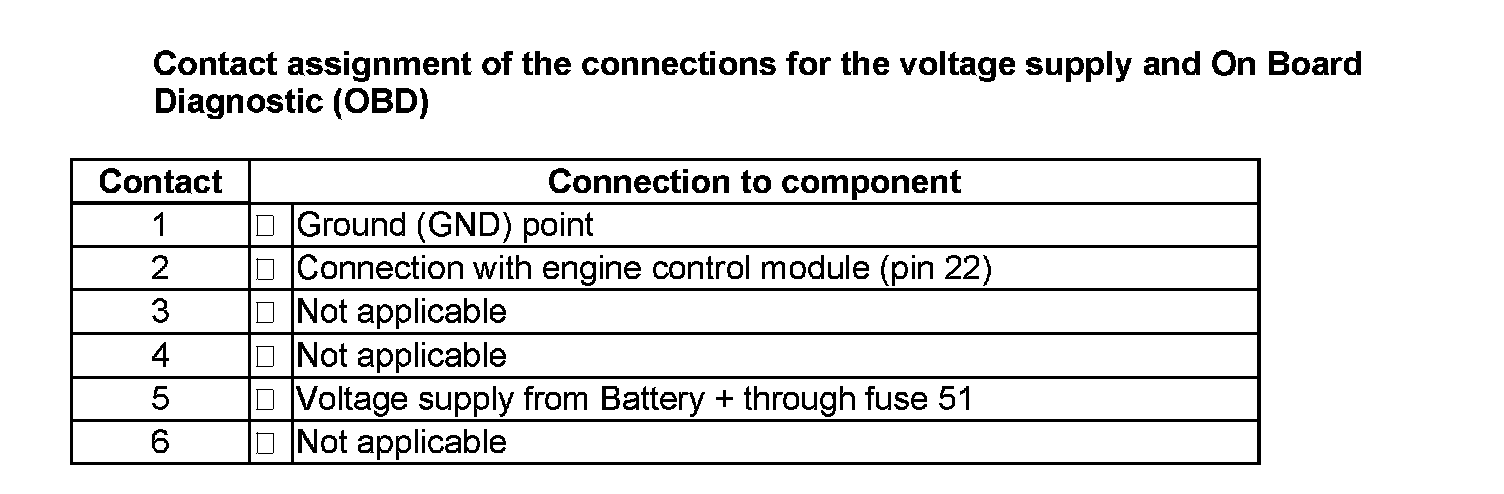

Contact assignment of the connections for the voltage supply and On Board Diagnostic (OBD)

Contact assignment of the connections for the voltage supply and On Board Diagnostic (OBD):

Test step overview

Test step overview:

Test table (Test steps 1-4)

Note:
^ The socket designations of the Adapter cable, 121 pin V.A.G 1598/31 are identical to the contact designations of the engine control module in the wiring diagram.
^ If the measured values differ from the specifications, carry out the measures for rectifying malfunctions in the right-hand part of the table.
^ If the measured values only differ slightly from the specifications, clean the sockets and connectors of the test units and measuring lines (with contact spray G 000 700 04) and repeat test. Before replacing the individual components, check lines and connections as well as, (particularly at specifications under 10 Ohms) repeating the resistance measurement of the component.

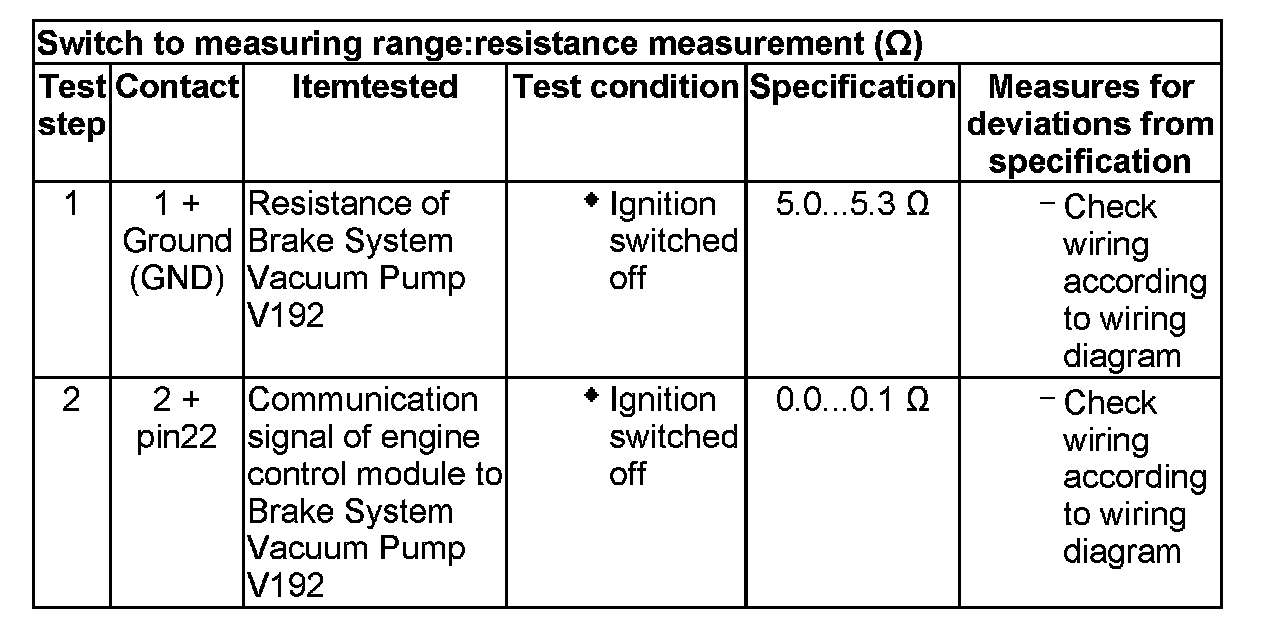

Test steps 1-2:

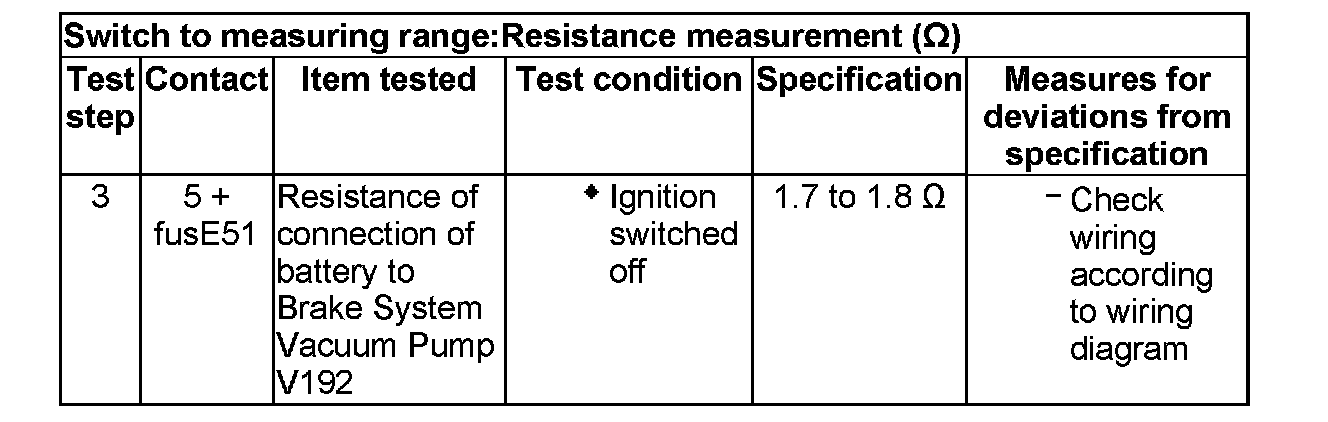

Test step 3:

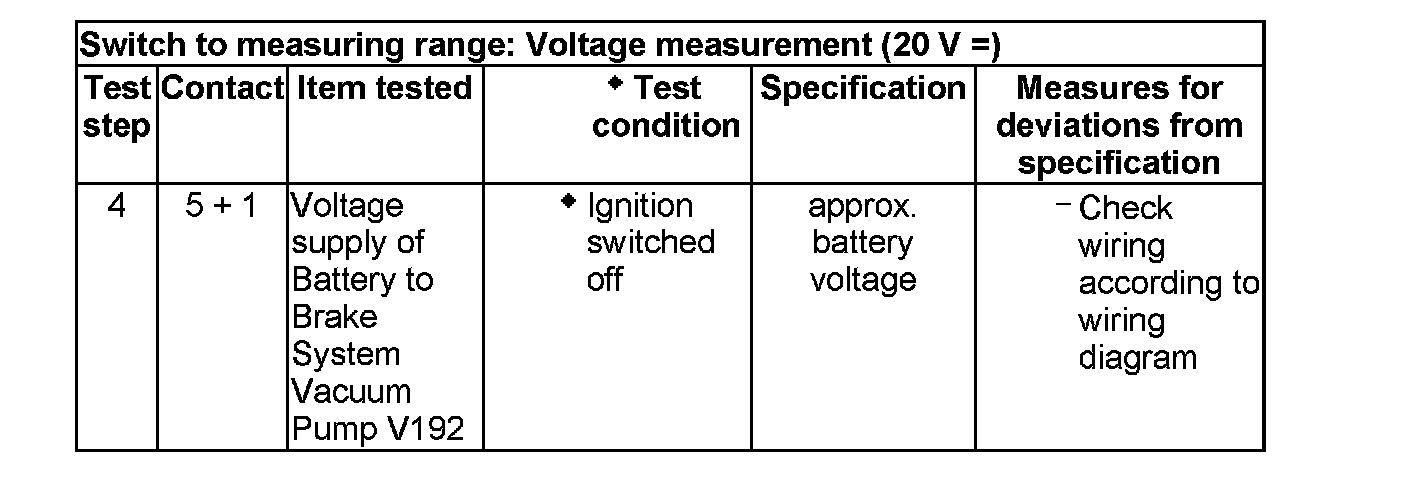

Test step 4:
