Vacuum Pump: Service and Repair

Brake System Vacuum Pump V192, removing and installing
There are no provisions for servicing the Brake System Vacuum Pump V192. If a malfunction is detected, the Brake System Vacuum Pump V192 must be replaced.

The Brake System Vacuum Pump V192 is located lower left on the subframe.

Removing

- Remove bolts - 1 - on bracket for Brake System Vacuum Pump V192
- Disconnect vacuum hose - arrow - from Brake System Vacuum Pump V192.
- Remove Brake System Vacuum Pump V192.

Bracket - arrow - for Brake System Vacuum Pump V192
- Remove lock nut - 2 - from bolt - 1 -.
- Remove bolt - 4 - and take bracket out.
- Remove bolts - 3 - to disassemble the bracket - arrow - further.

Installing

Installation is carried out in reverse sequence of removal.

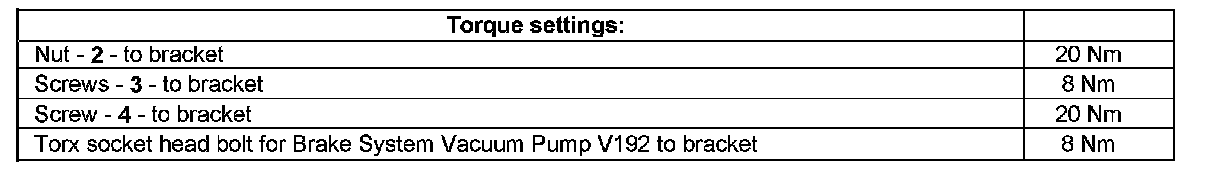

Torque settings:
