Brake Pedal, Assembly Overview

Brake pedal, assembly overview

CAUTION: The brake pedal travel must not be restricted by additional floor coverings.

Note:
^ Grease all mountings before installing with grease G 000 602.

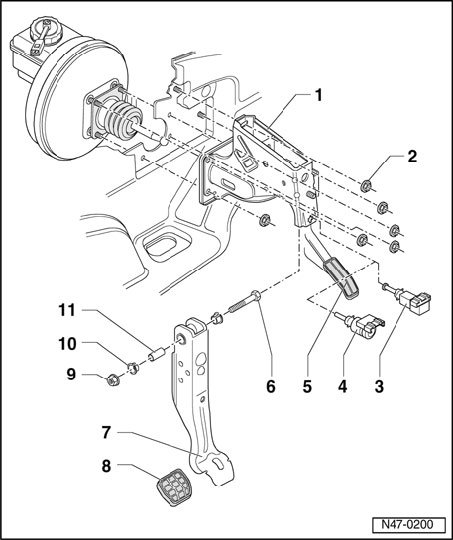

Brake pedal, assembly overview:

1 - Mounting
2 - Self-locking hex nut, 20 Nm
3 - Brake light switch F for models up to 02.00
^ Before installing brake light switch, clip brake pedal to brake booster push rod
^ Check the functioning of brake light

4 - Brake light switch F for models from 03.00
^ Before installing brake light switch, clip brake pedal to brake booster push rod

5 - Accelerator pedal
6 - Hex bolt
7 - Brake pedal
8 - Pad
9 - Self-locking hex nut, 20 Nm
10 - Mounting bushing
11 - Pivot pin
