Vehicle Data Label

Vehicle data label
Explanation of the PR. numbers on vehicle data label

Various wheels are installed depending on engine and equipment level. These are identified by the PR. numbers.

The wheel installed in the vehicle is documented on the vehicle data label with the relevant PR number.





Location of optional equipment number (PR No.) on vehicle data plate (arrow)

Depending on equipment level, the PR number is printed in different locations on the vehicle data label.

In this example the vehicle is equipped with the standard wheel 1ZM -arrow-.

The PR numbers are critical for the assignment of coding.








Coding table for ABS
^ Note: the control module must be coded with the same code number as the previous control module installed in the vehicle

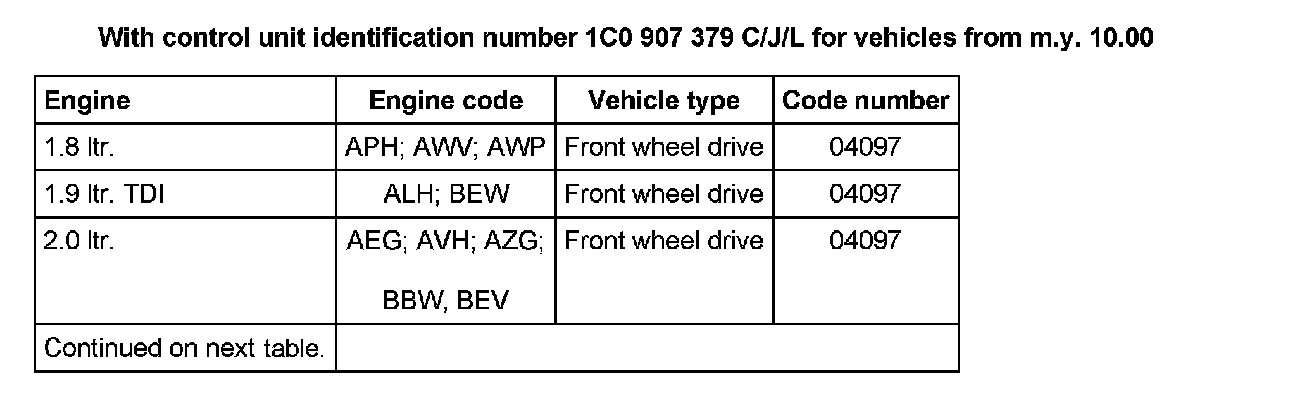

With control unit identification number 1 CO 907 379 C/J/L for vehicles from m.y. 10.00

With control unit identification number 1C0 907 379 C/J/L for vehicles from m.y. 10.00:

Table for ABS/EDL/ASR, coding
^ Note: the control module must be coded with the same code number as the previous control module installed in the vehicle

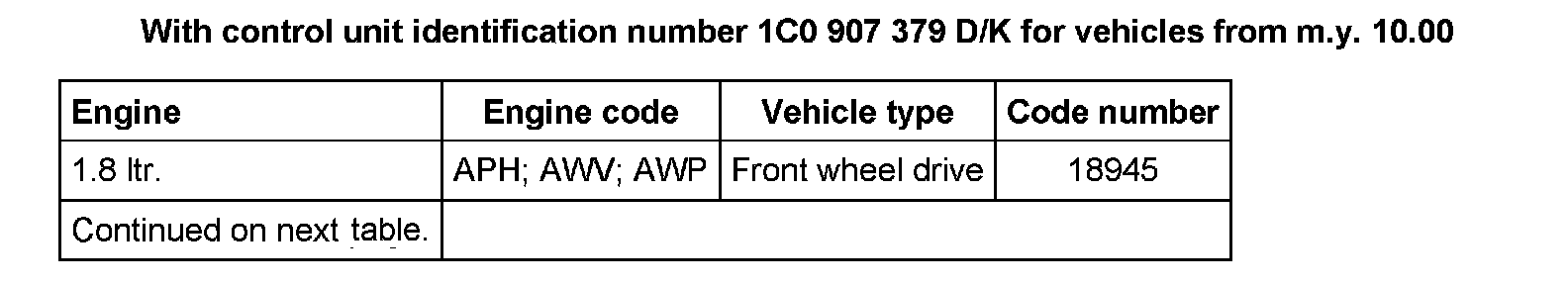

With control unit identification number 1CO 907 379 D/K for vehicles from m.y. 10.00

With control unit identification number 1C0 907 379 D/K for vehicles from m.y. 10.00:

Table for ABS/EDL/ASR/ESP, coding
^ Note: the control module must be coded with the same code number as the previous control module installed in the vehicle

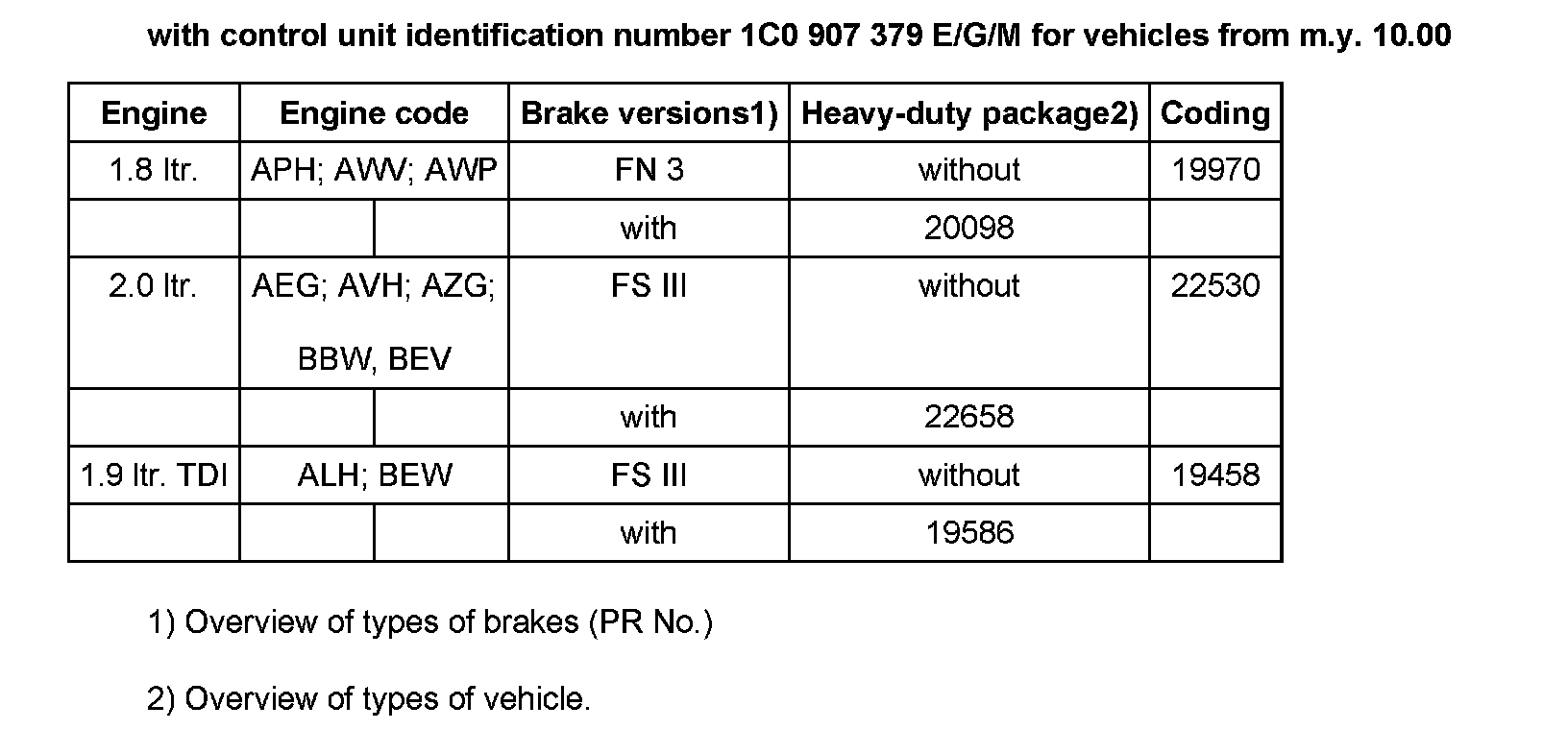

With control unit identification number 1CO 907 379 E/G/M for vehicles from m.y. 10.00

with control unit identification number 1C0 907 379 E/G/M for vehicles from m.y. 10.00:

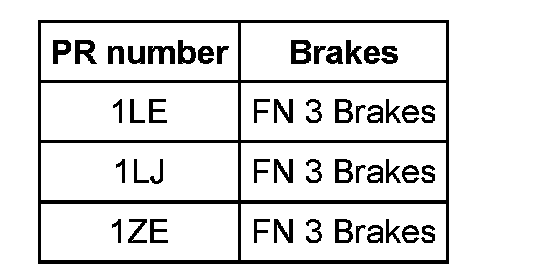

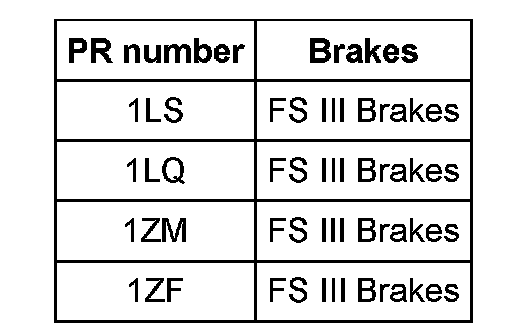

1) Overview of types of brakes (PR No.).
2) Overview of types of vehicle.
