Electrical Test of Mark 60, Vehicles From M.Y. 10.00

Electrical test of Mark 60, vehicles from m.y. 10.00

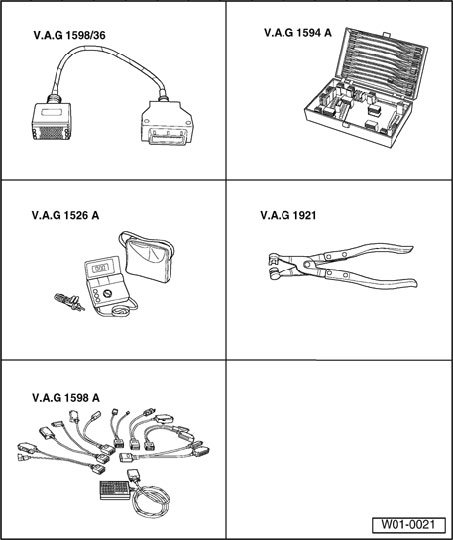

Special tools and equipment
^ V.A.G 1598/36 Adapter
^ V.A.G 1594 A Adapter set
^ V.A.G 1526 A Hand multimeter
^ V.A.G 1921 Pliers
^ V.A.G 1598 A Test box

The test steps from Multi-Pin Connector With Contact Assignments apply only to vehicles with ABS/EDL/ASR/ESP. ABS Mark 60
^ For vehicles on which the On Board Diagnostic (OBD) does not give any indication of the source of the malfunction. Work through the complete electrical check.
^ For vehicles on which the OBD provides a direct indication of the source of the malfunction. Only carry out the test steps recommended in the DTC table (directed entry).

An overview of all the test steps in the electrical check can be found under Multi-Pin Connector With Contact Assignments. ABS Mark 60

Test prerequisites
^ Before starting the test, switch ignition and all electrical consumers off (headlights, lighting, fans etc.).
^ Fuses must be OK (pull fuse out of holder to check)
- Pull fuse holder out of cable channel.





- Release ABS control module (w/EDL) -J104- connector -arrow 1 - and pull off -arrow 2-.





- Connect test box V.A.G 1598/36 -1- to multi-pin connector of ABS control module (w/EDL) -J104- -2-.

The specified values are matched to the V.A.G 1526 and are not necessarily applicable for other test modules.
