Read Measuring Value Block (Function 08)

Read Measuring Value Block (function 08)

Note: All functions which could previously be performed with V.A.G 1551 can also be performed with the tester VAS 5051.

The control module can transfer a considerable amount of test data. This test data delivers information on the operational condition of the system and/or sensors connected to it. In many cases the data supplied aids the technician in both troubleshooting and corrective action. Because all the information cannot be evaluated at the same time, the test data has been summarized into single display groups, containing information which can be selected using display group numbers.

- Connect V.A.G 1551 scan tool and insert "Brake Electronics" address word 03 with ignition switched on.





Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.

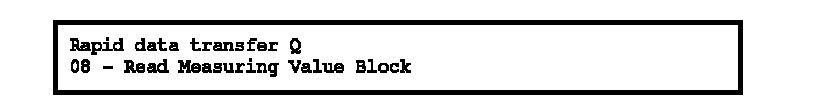

Indicated on display
- Press -Q- button to confirm input.

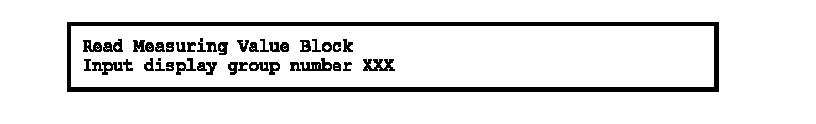

Indicated on display
- Input display group number from list of selectable display group numbers.
