Basic Setting (Function 04)
Basic Setting (function 04)
Special tools and test equipment
^ VAS 5234 brake filler and bleeder unit
On vehicles with EDL the basic setting is used to bleed the hydraulic unit only. The brake system must be bled separately.
Basic setting is only necessary when at least one brake fluid reservoir chamber is completely empty (e.g. leaks in brake system).
Basic settings must also be carried out after a leaking brake system has been serviced.
- Connect VAS 5234 brake filler and bleeder unit.

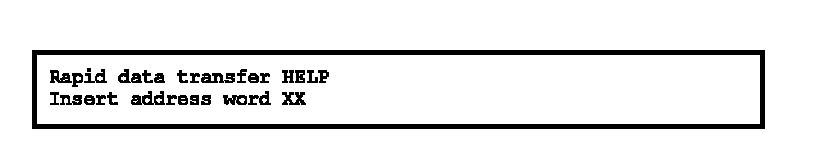

- Connect V.A.G1 551 scan tool and insert "Brake Electronics" address word 03 with ignition switched on.
Note: The basic setting to bleed the hydraulic unit is only required when one chamber of the brake fluid reservoir is completely empty.
Indicated on display
- Press buttons -0- and -4- to select "Basic Setting" function 04.

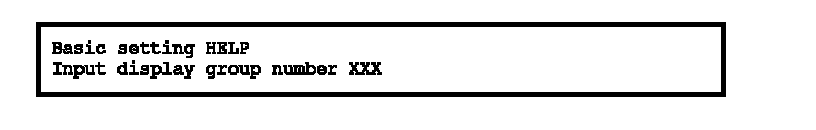

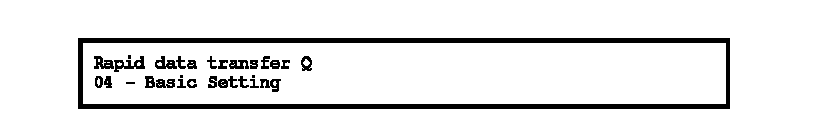

Indicated on display
- Press -Q- button to confirm input.

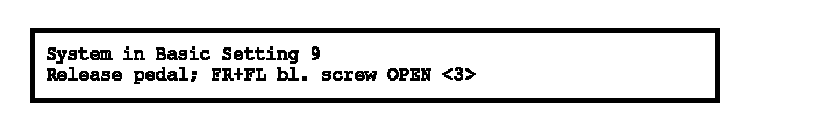

Indicated on display
- Press buttons -0-, -0- and -1 - to input display group number 1 (001).
- Press -Q- button to confirm input.

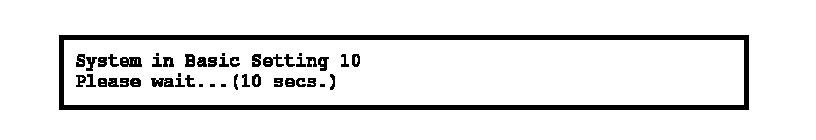

Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down.
- Hydraulic pump runs.
^ Pedal comes back.

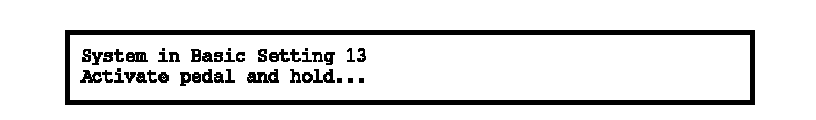

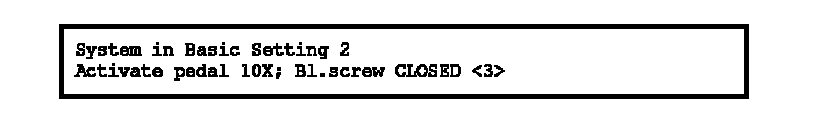

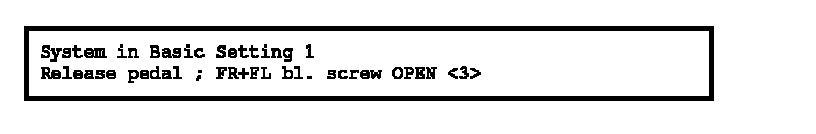

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

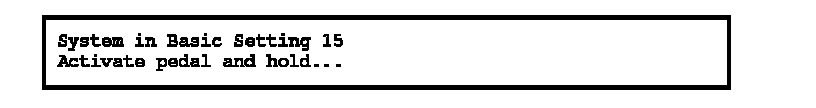

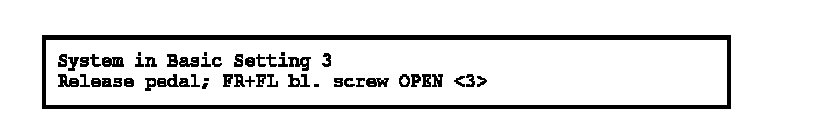

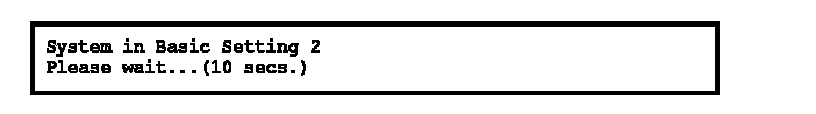

Indicated on display
Hydraulic pump runs.

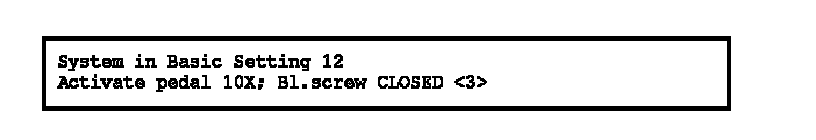

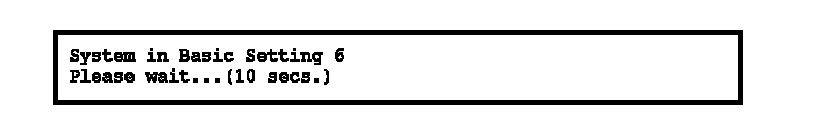

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

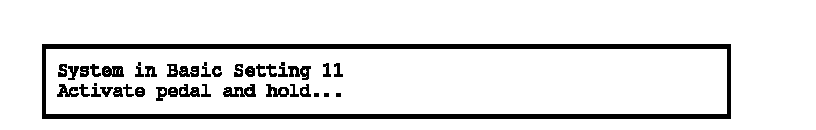

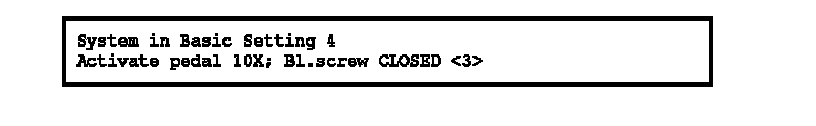

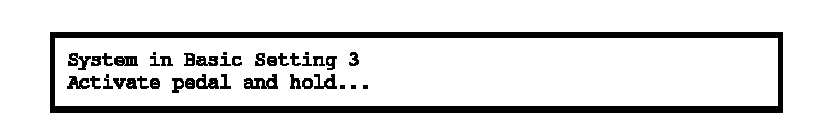

Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

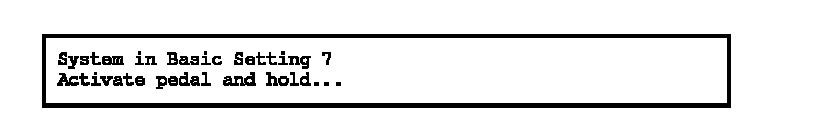

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

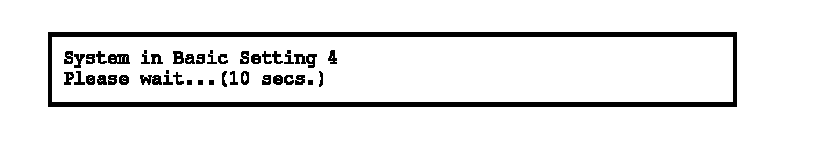

Indicated on display
Hydraulic pump runs.
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

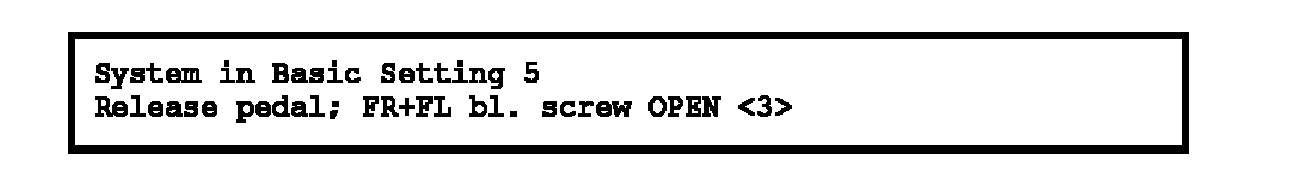

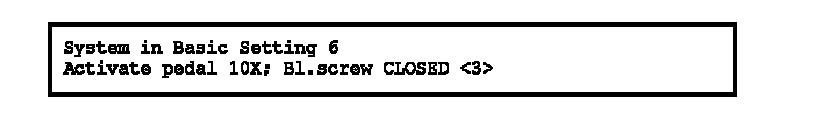

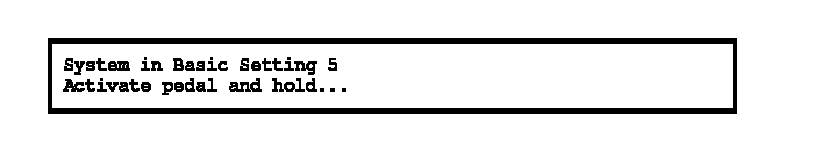

Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
Hydraulic pump runs.
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

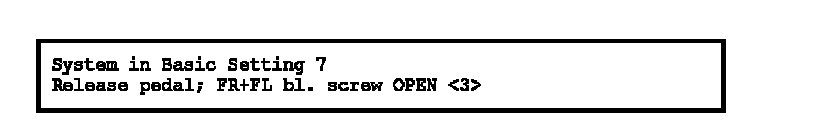

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

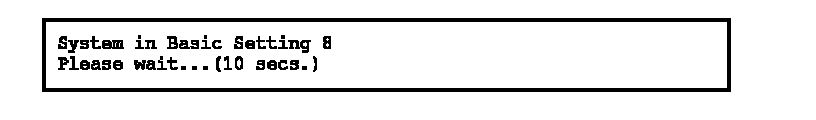

Indicated on display
Hydraulic pump runs.

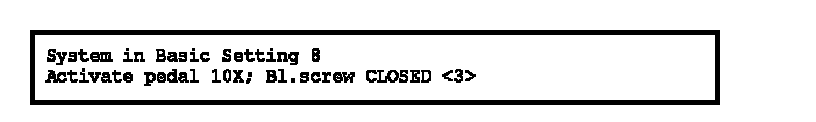

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

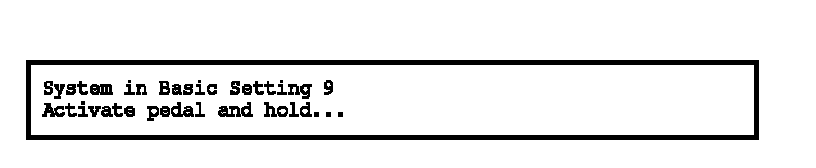

Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
Hydraulic pump runs.
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

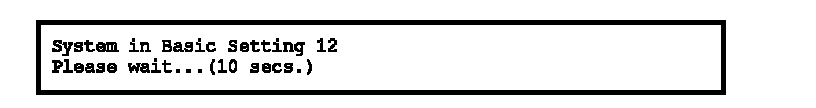

Indicated on display
Hydraulic pump runs.
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
Hydraulic pump runs.
Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
- Operate pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

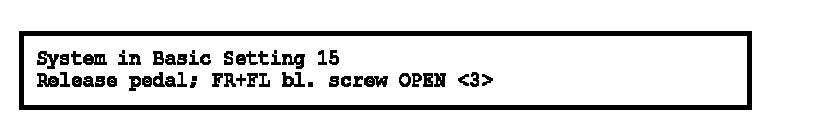

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

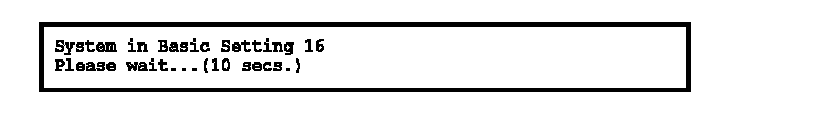

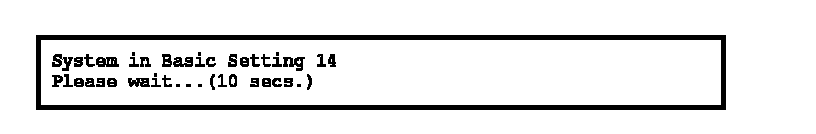

Indicated on display
Hydraulic pump runs.

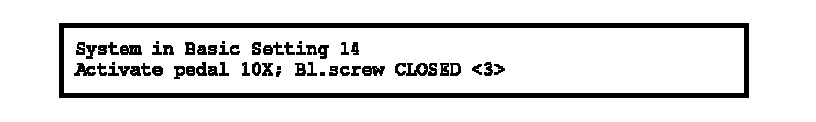

Indicated on display
- Press key 3 on VAG 1551 or arrow up key on VAS 5051.

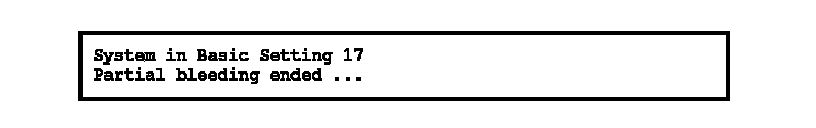

Indicated on display
- Press --> button.
Indicated on display
- Press buttons -0- and -6-to select "End Output" function 06.
Indicated on display
- Press -Q- button to confirm input.
Indicated on display
- Press -C- button.
- Switch ignition off.
- Disconnect V.A.G1 551 scan tool from Data Link Connector (DLC).
The brake system must be bled.
The basic setting is used to bleed the hydraulic unit only. The brake system must be bled separately.
