Diagnostic Trouble Code (DTC) Erasing Memory, Ending Output

Diagnostic Trouble Code (DTC) erasing memory, ending output

Note: All functions that have so far been carried out with V.A.G 1551 can now also be carried out with the tester VAS 505 1.

Requirements:
^ DTC memory checked.
1. Erasing DTC memory
- Press --> key.

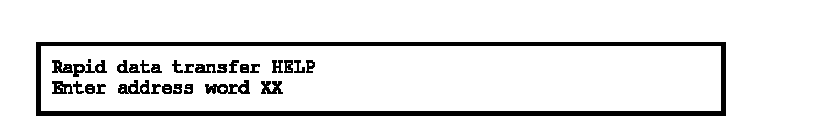

Indicated on display:
- Press keys -0- and -5-- 05 enters the "Erase DTC memory" function.





Indicated on display:
- Confirm entry with Q key

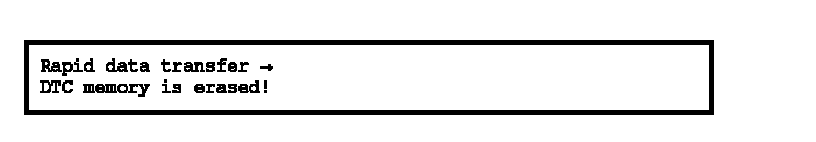

Indicated on display:
- Press --> key.

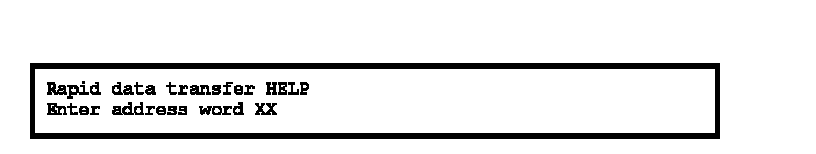

Indicated on display:

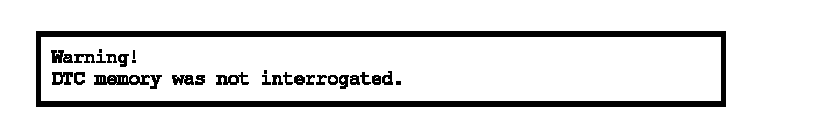

Indicated on display:

Note: Adhere exactly to test sequence. First check DTC memory, then erase

2. Ending output
- Press keys -0- and -6-, this ends the output.

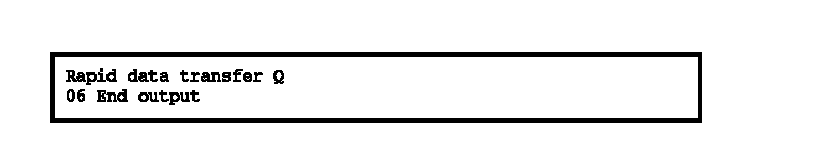

Indicated on display:
- Confirm input with Q key.

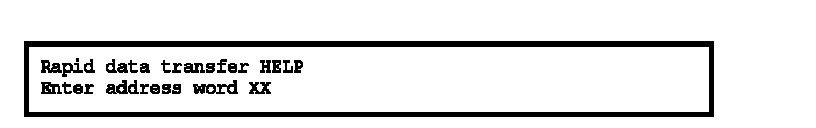

Indicated on display:
- Switch off ignition.
- Disconnect connection to V.A.G 1551 scan tool.
- Switch on ignition.

ABS warning light -K47- must go out after approx. 2 seconds.
