Erase DTC Memory (Function 05)

Erase DTC Memory (function 05)

Note: All functions which could previously be performed with V.A.G 1551 can also be performed with the tester VAS 5051.

Requirements
^ DTC memory has been checked
- Press --> button.

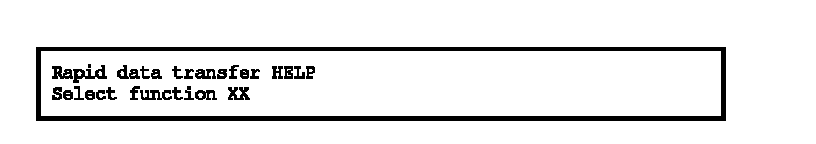

Indicated on display
- Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

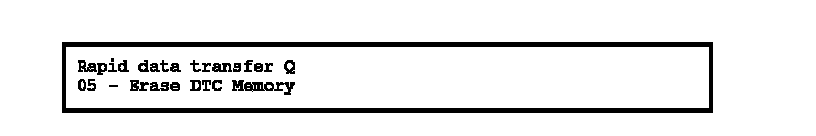

Indicated on display
- Press -Q- button to confirm input.

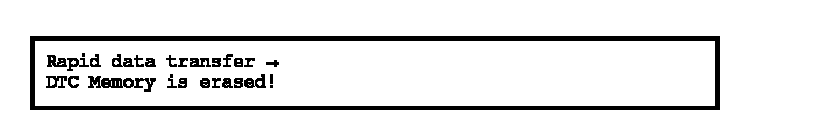

Indicated on display

DTC memory is now erased.
- Press --> button.





Indicated on display

Note:
^ This message indicates an error in the test sequence.
^ This message indicates an error in the test sequence.
^ Adhere exactly to the test sequence- first check DTC memory, and if necessary, repair malfunctions, then erase DTC memory.
