End Output (Function 06)

End Output (function 06)

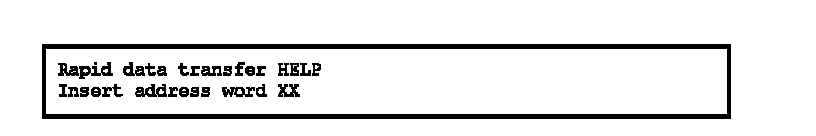

Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.

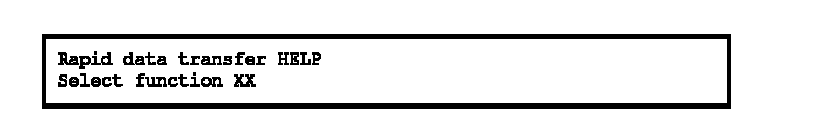

Indicated on display
- Press -Q- button to confirm input.

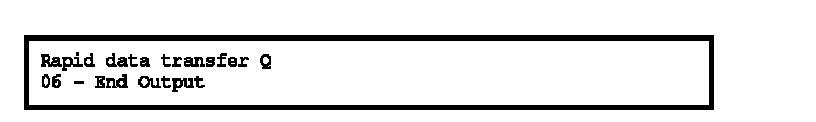

Indicated on display
- Switch ignition off.
- Disconnect V.A.G 1551 scan tool from Data Link Connector (DLC).
- Switch ignition on.

ABS warning light -K47- and warning light for brake system -K118- must go out after approx. 2 seconds.
