Diagnostic Trouble Codes (DTCs) Displayed By Warning Lights -K14-, -K47- and -K118

Diagnostic Trouble Codes (DTC) displayed by warning lights -K14-, -K47- and -K118

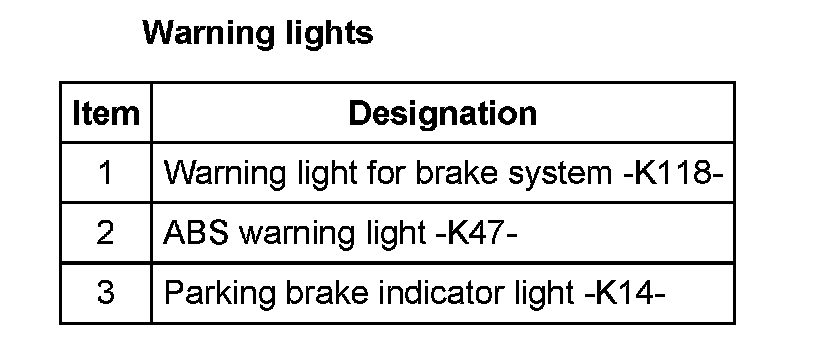

Warning lights

Warning lights:

For vehicles with ABS/EDL/ASR and/or a radio/navigation system, the warning light for brake system -K118- is at position -3-.

The function of the parking brake warning light -K14- is then taken on by the warning light for brake system -K118.

Warning lights
ABS warning light -K47

ABS warning light -K47-:

If ABS warning light -K47- (-2-) does not go out after switching the ignition on and completion of test sequence, the malfunction may be:
a - Voltage supply is below 10 volts
b - ABS malfunction

The anti-locking brake system remains switched off with an ABS malfunction (b), but the brake system remains fully operational.
c - Sensor malfunction after last starting the vehicle (sporadic)

In the case of sensor malfunction (c) ABS warning lamp will go out after restarting the engine and at a road speed of above 20 km/h (approx. 13 mph).
d - Open circuit between instrument cluster connector T32 (blue) pin 19 to control module pin 16
e - Instrument cluster malfunction

Parking brake indicator light -K14-/Warning light for brake system -K118





If the parking brake indicator light -K14- (-3-/-1-), or on vehicles with the navigation system the warning light for brake system -K118-, does not go out after switching the ignition on, the malfunction may be:
a - Parking brake is applied
b - Switch for the parking brake indicator light -K14- is malfunctioning or incorrectly adjusted
c - There is a wiring malfunction

Vehicles with ABS/EDL
Complaint: "Vehicle has no EDL function"

For this complaint a possible cause of the malfunction may be that the brake light switch is incorrectly adjusted.

A further possible cause of the malfunction may be that the brake light switch is not functioning.
