ABS ITT Mark 20 IE
Multi-pin harness connector with terminal assignment
Note: All terminals not listed are currently not assigned and must never be connected to other components!

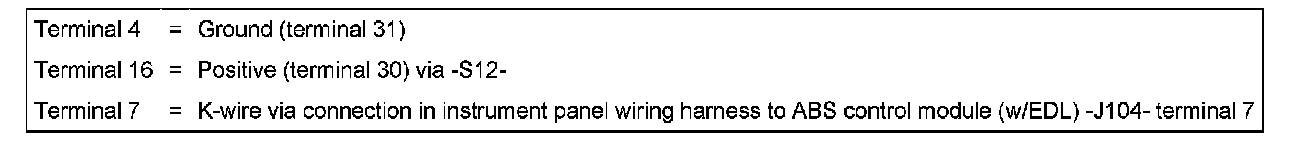

Data Link Connector (DLC) for voltage supply and On Board Diagnostic (OBD) with the V.A.G 1551 Scan Tool (ST) terminal assignment
Data Link Connector (DLC) for voltage supply and On Board Diagnostic (OBD) with the V.A.G1551 Scan Tool (ST) terminal assignment:

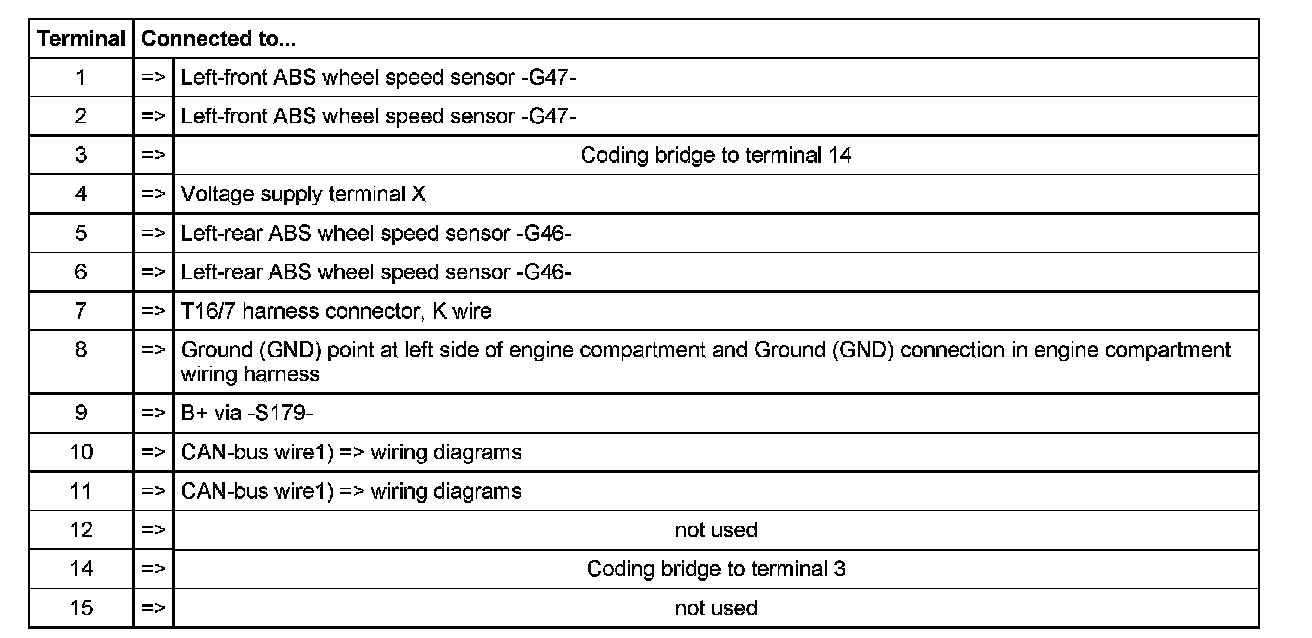

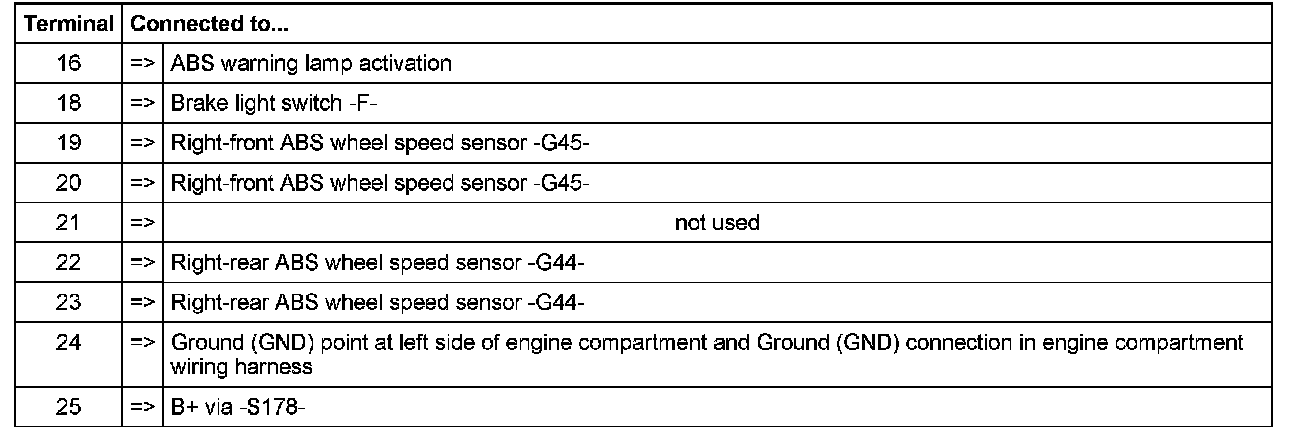

T25 harness connector and ABS control module (w/EDL) -J104- terminal assignment
CAN-bus control diagram
1- Automatic Transmission Control Module (TCM)
2- Bus driver
3- ECM
4- Bus-driver
5- Terminating impedance
6- CAN-bus
7- Terminating impedance
8- Bus driver
9- ABS control module (w/EDL) -J104

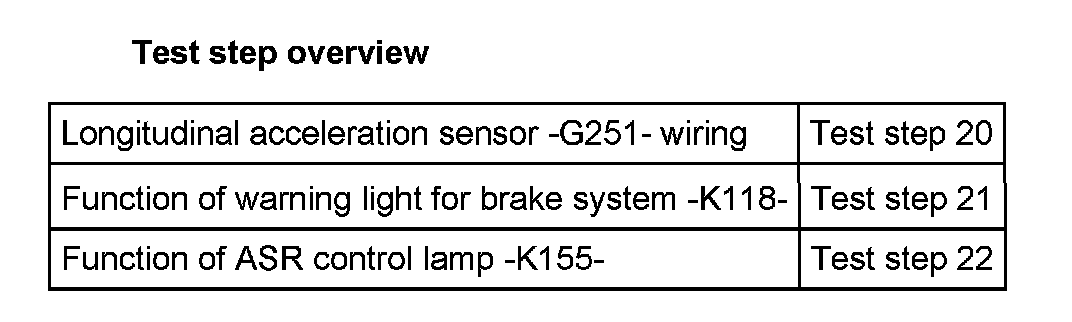

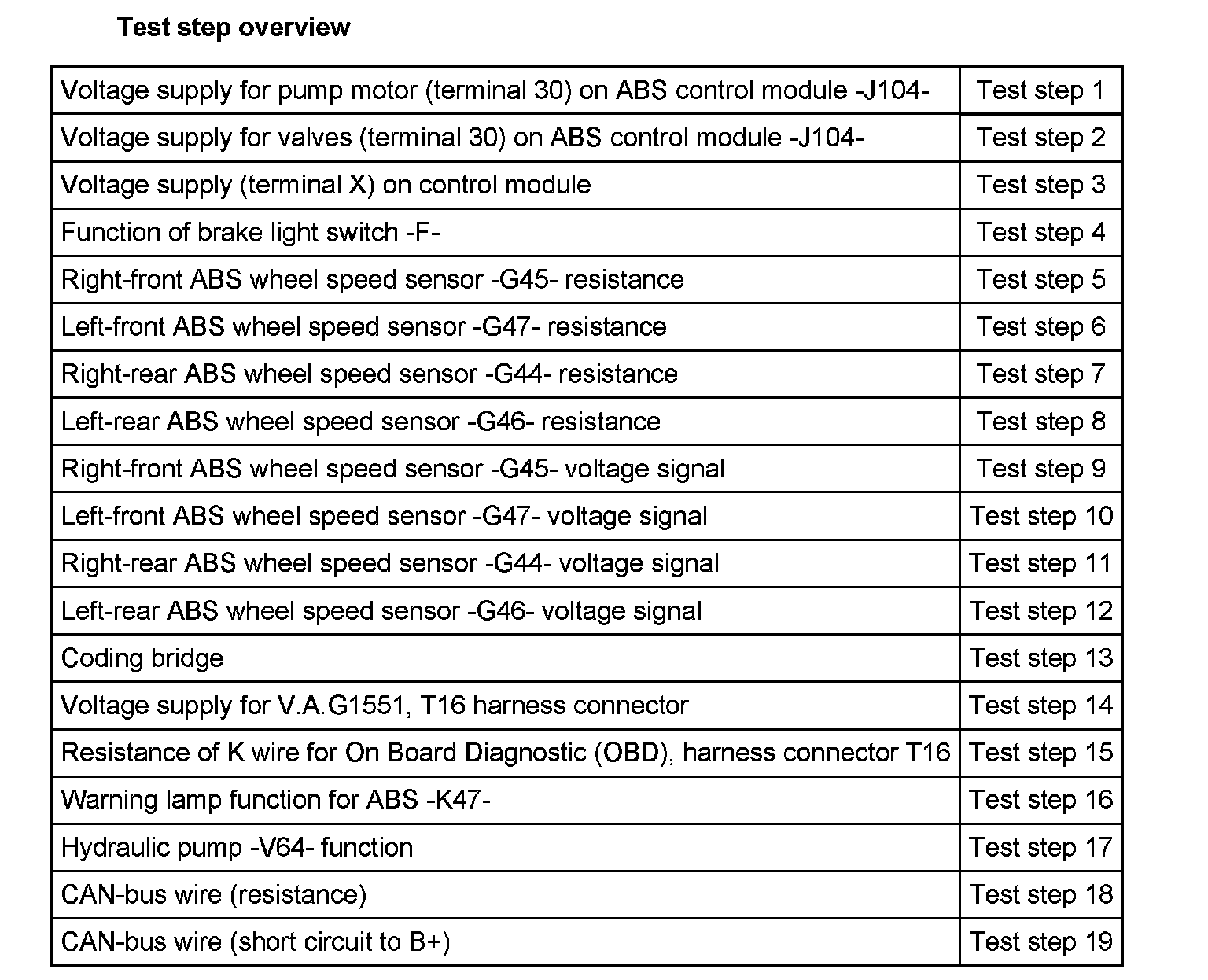

Test step overview
