Power Door Lock Switch: Service and Repair

Switch For Interior Lock, Passenger Side -E198-, Removing and Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove door trim.
- Disconnect electrical connection.

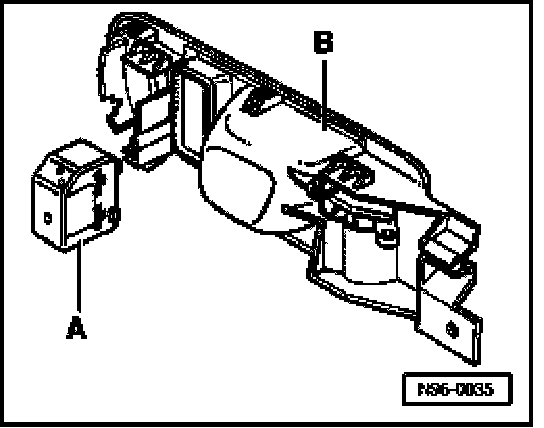

- Release switch housing -A- by pressing sideways out from locking device in mounting frame -B- and remove.

Installing
- Connect electrical connection.
- Insert switch -A- in recess in mounting frame -B- and engage.
- Install door trim.
