Backrest, Removing and Installing (Convertible)

Backrest, Removing And Installing (convertible)

Removing
- Remove seatbench.

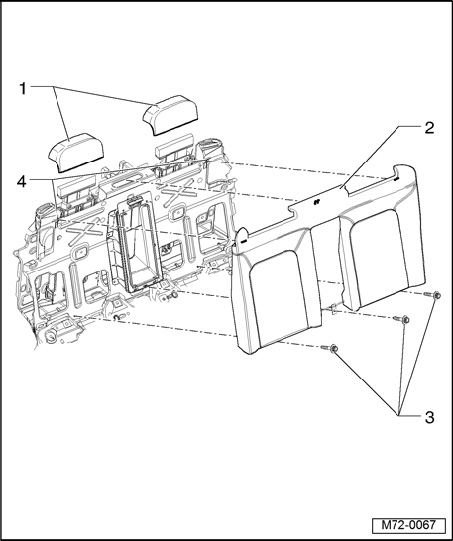

- Pull headrest cover - 1 - upward and remove.
- Remove bolts - 3 - (20 Nm).
- Remove backrest - 2 - upward out of mounting - 4 -.

Installing
- Installation is performed in the reverse order of removal.
