Sunroof / Moonroof Frame: Service and Repair

Carrier Unit, Removing and Installing







Removing
- Removing sliding/tilting sunroof preselection control.
- Removing headliner.

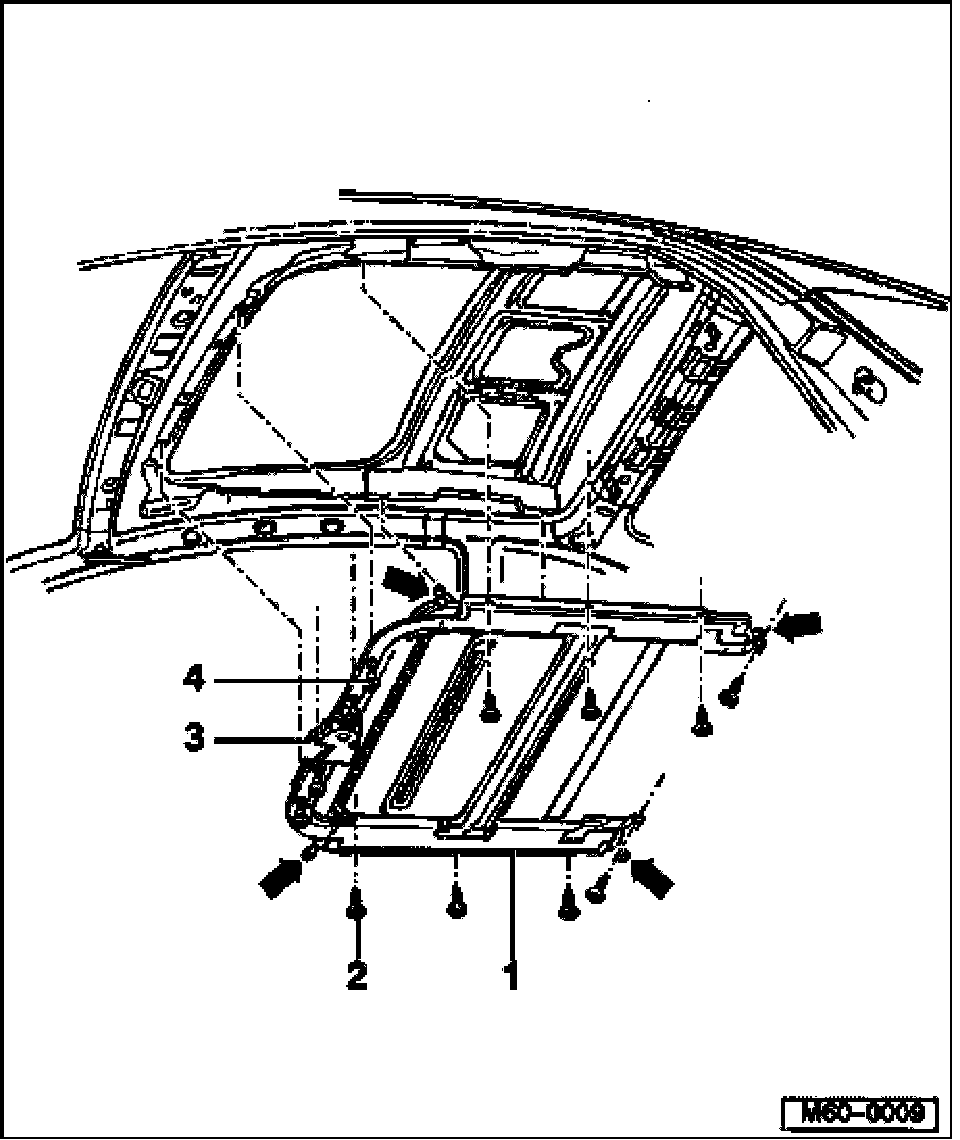

- Pull water drain hoses - 1 - off carrier unit - arrows -.
- Remove bolts/screws - 2 - and - 4 - (with sleeves) and lift carrier unit out of vehicle with help of a second mechanic.

Installing







- Insert carrier unit - 1 -, align with bolt/screw holes and insert bolts/screws - 2 - and - 4 - (with sleeves).
- Check routing of wiring and connectors for electrical components on roof and reinstate if necessary.
- Tighten carrier unit - 1 - starting at drive - 3 - for sliding/tilting sunroof on left and right-hand sides moving rearward (8 Nm).
- Install water drain hoses - arrows -.
- Install connector for drive - 3 -.
