Parallel Running, Checking

Parallel Running, Checking

- Removing sliding/tilting sunroof glass panel.

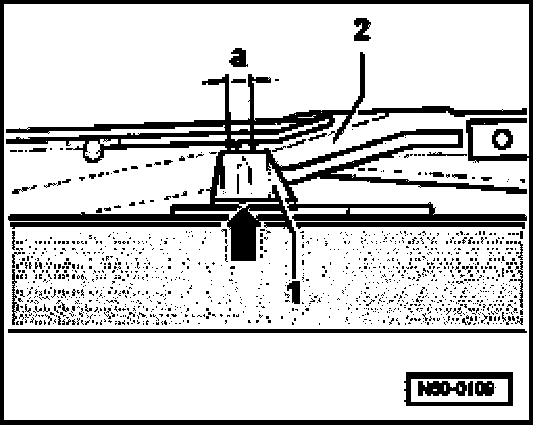

- The mark - arrow - on the rear of the guide upper part - 1 - must lie within the marks - dimension a - on the guide rail gate - 2 -, on both sides.
- The guide channel - 2 - must be located in the guide rails (cannot be moved by hand).
