Sliding/Tilting Sunroof Glass Panel (Height Adjustment)

Sliding/Tilting Sunroof Glass Panel (height Adjustment)

- Sliding/tilting sunroof "0" position OK.
- Tilt (raise) sliding/tilting sunroof open.
- Slide sun blind to rear.

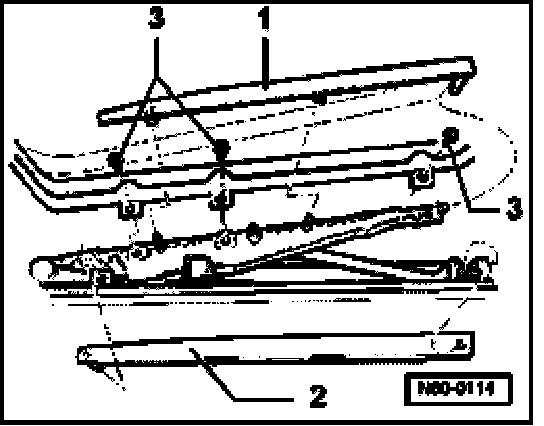

- Unclip lower trim - 2 - in forward area (working from outer side inward to center of vehicle) and unhook at rear.
- Unclip upper trim - 1 - at front, the center and unhook at rear.
- Loosen securing bolts - 3 - ( Torx insert T25; 4.5 Nm).
- Run glass panel to "Closed".
- Carry out height adjustment of glass panel at front and rear on both sides as follows:

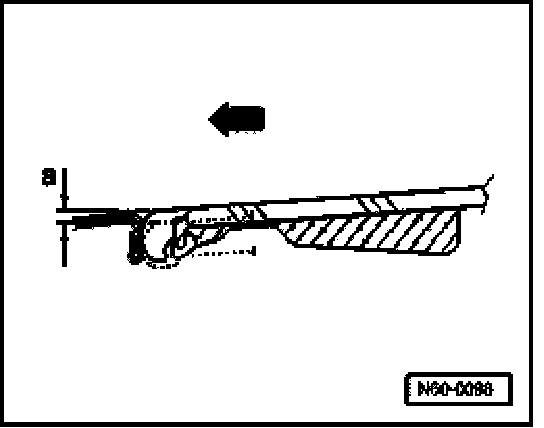

Panel adjustment front:
- - a - = 0...1 mm lower than roof level
- - Arrow - = direction of travel

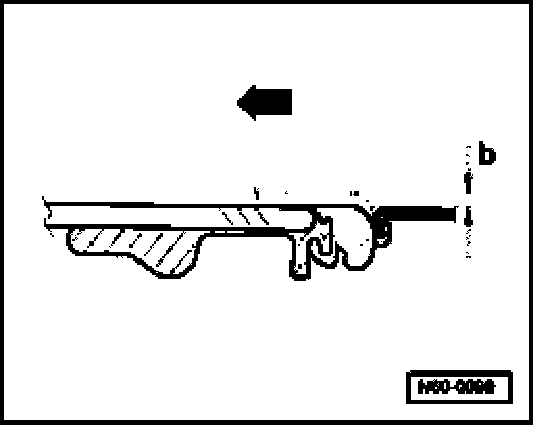

Panel adjustment rear:
- -b- = 0...1 mm higher than roof level
- -Arrow - = direction of travel
- Tighten screws for glass panel (4.5 Nm).

Always tighten left and right-hand sides of glass panel symmetrically.
- Tilt (raise) sliding/tilting sunroof open.

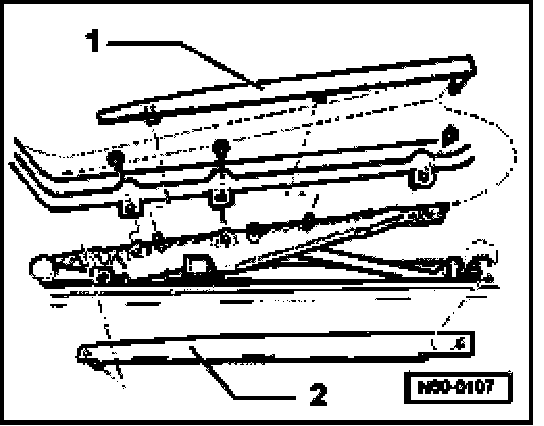

- Hook in upper trim - 1 - at rear and clip front and center in.
- Hook in rear of lower trim - 2 - and clip front in.
