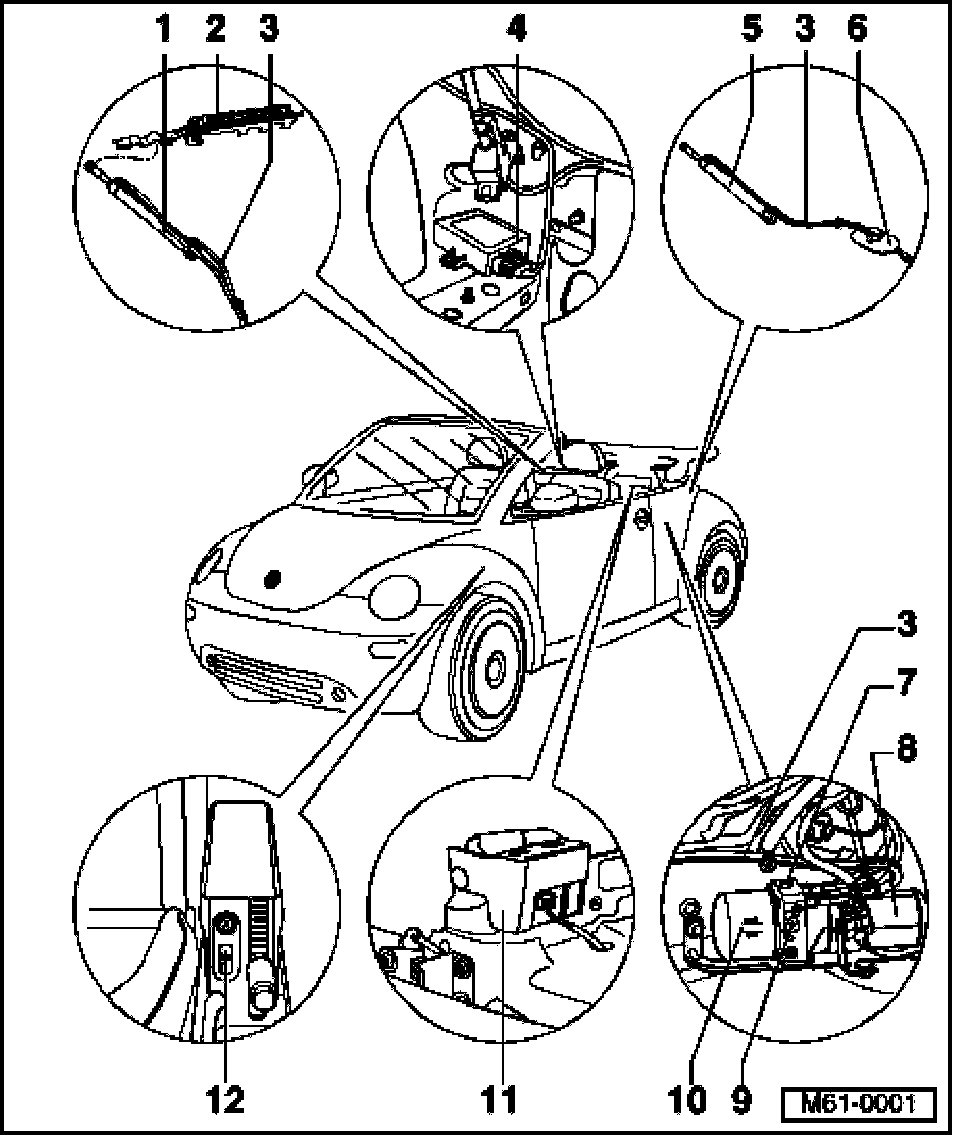

Convertible Top Components - Electro/Hydraulic, Assembly Overview

Convertible Top Components - Electro/Hydraulic, Assembly Overview







1. Right hydraulic cylinder
2. Convertible Top Open Position Switch F171
- Installed only on right-hand side.
- Unclip from hydraulic cylinder - 1 -.
3. Hydraulic hoses
4. Convertible Top Control Module J256
- On right in luggage compartment.
- Additional information Electrical Wiring Diagrams, Troubleshooting Component Locations.
5. Left hydraulic cylinder
6. Plug
7. Oil filler plug
- 5 Nm.
8. Hydraulic pump
9. Bypass valve
- Unscrewing bypass valve releases pressure in hydraulic system and convertible top can be operated by hand.
10. Fluid level indicator
- Hydraulic oil level must lie between min. and max. marks when convertible top is open.
11. Right Contact Switch (Cover Installed) F156 or Left Contact Switch (Cover Installed) F155 for convertible top
- Qty. 2.
12. Convertible Top Operation Switch E137
- Installed in center console.
