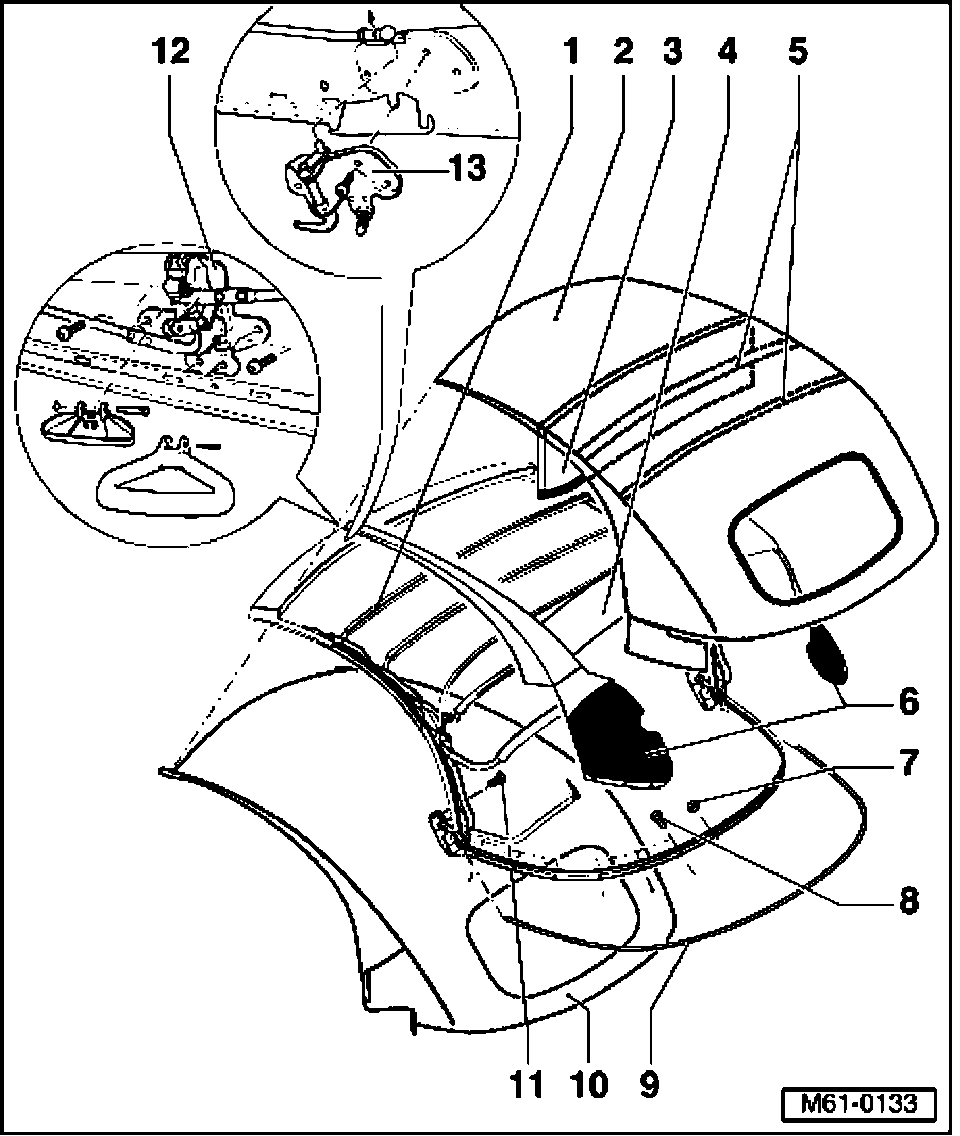

Convertible Top - Manual, Assembly Overview

Convertible Top - Manual, Assembly Overview







1. Convertible top frame
- Removing convertible top.
2. Convertible top fabric cover
- Rear window is part of convertible top cover.
3. Detail-pad top cover assembly
- Sewed under convertible top fabric cover
4. Padding material
5. Belt
- Sewed under convertible top fabric cover
6. Pad non-woven rear
- Sewed on padding material
7. Nut
- 10 Nm
8. Bolt/screw
- Qty. 12.
- 10 Nm
9. Sealing cord
10. Convertible top headliner
11. Bolt/screw
- 50 Nm
12. Convertible top front latch
- For correct installation position of convertible top front latch.
13. Front retaining latch
