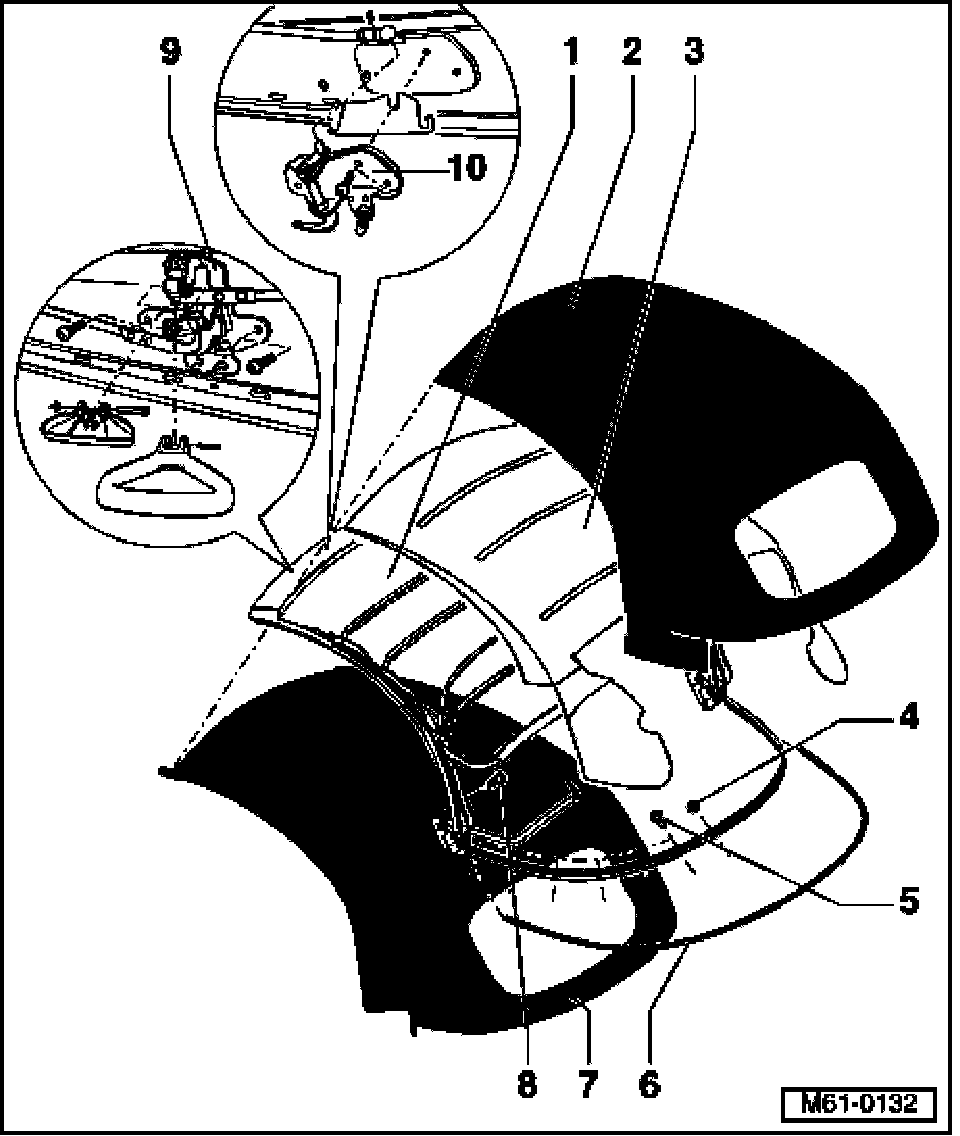

Convertible Top - Electro/Hydraulic, Assembly Overview

Convertible Top - Electro/Hydraulic, Assembly Overview







1. Convertible top frame
- Removing convertible top.
2. Convertible top fabric cover
- Rear window is part of convertible top cover.

NOTE: Rear window is part of convertible top cover (not serviced separately). Entire convertible top fabric assembly must be replaced if rear window is damaged.

3. Padding material
4. Nut
- 10 Nm.
5. Bolt/screw
- Qty. 12.
- 10 Nm.
6. Sealing cord
7. Convertible top headliner
8. Bolt/screw
- 50 Nm.
9. Convertible top front latch
- For correct installation position of convertible top front latch.
10. Front retaining latch
