Convertible Top Reservoir: Locations

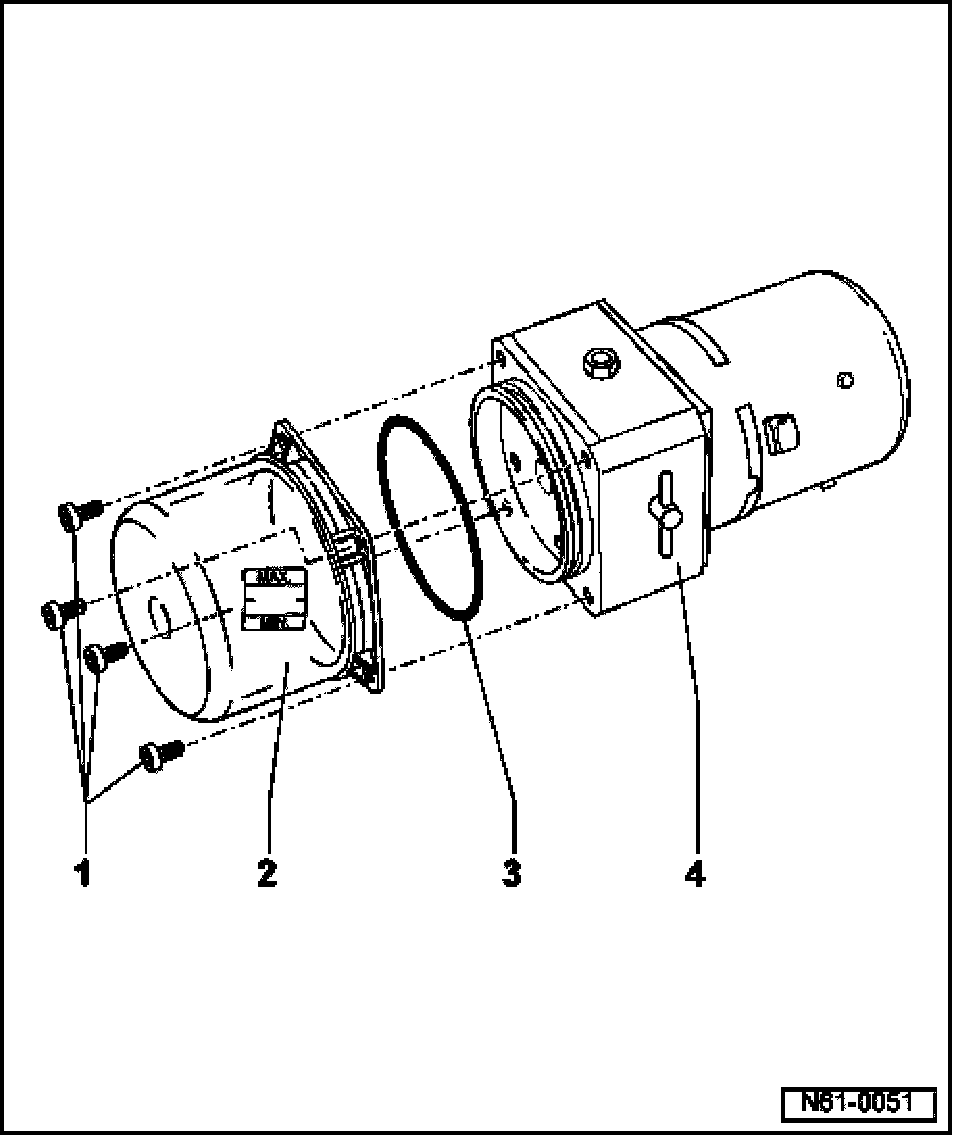

Oil Reservoir, Assembly Overview

Remove hydraulic pump







1. Torx screws
- 2 Nm.
- Always replace screws.
2. Oil reservoir
3. O-ring
- Always replace.
- O-ring is included in repair kit.
4. Hydraulic pump
