Rear Convertible Top Latch, Electric-/Hydraulic Convertible Top, Assembly Overview

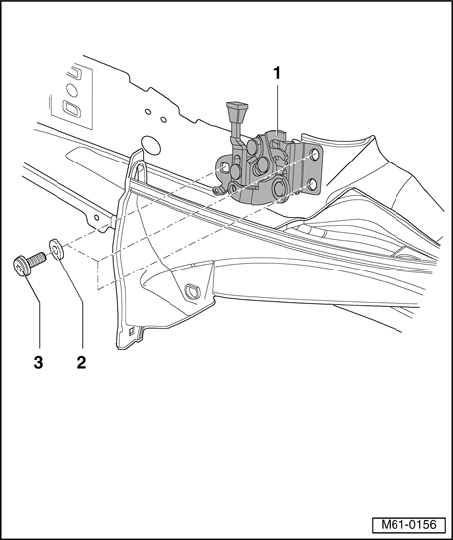

Rear Convertible Top Latch, Manual Convertible Top, Assembly Overview







1 - Convertible top latch
- Removing:
- Remove side trim
- Open convertible top.
- Remove bolts.

- Installing:
- Install bolts and tighten lightly.
- Align module for convertible top latch.
- Close convertible top.
- When convertible top has engaged, tighten bolts.
- Then perform function test.

2 - Washer
- 6x

3 - Bolt
- 10 Nm
- 6x
