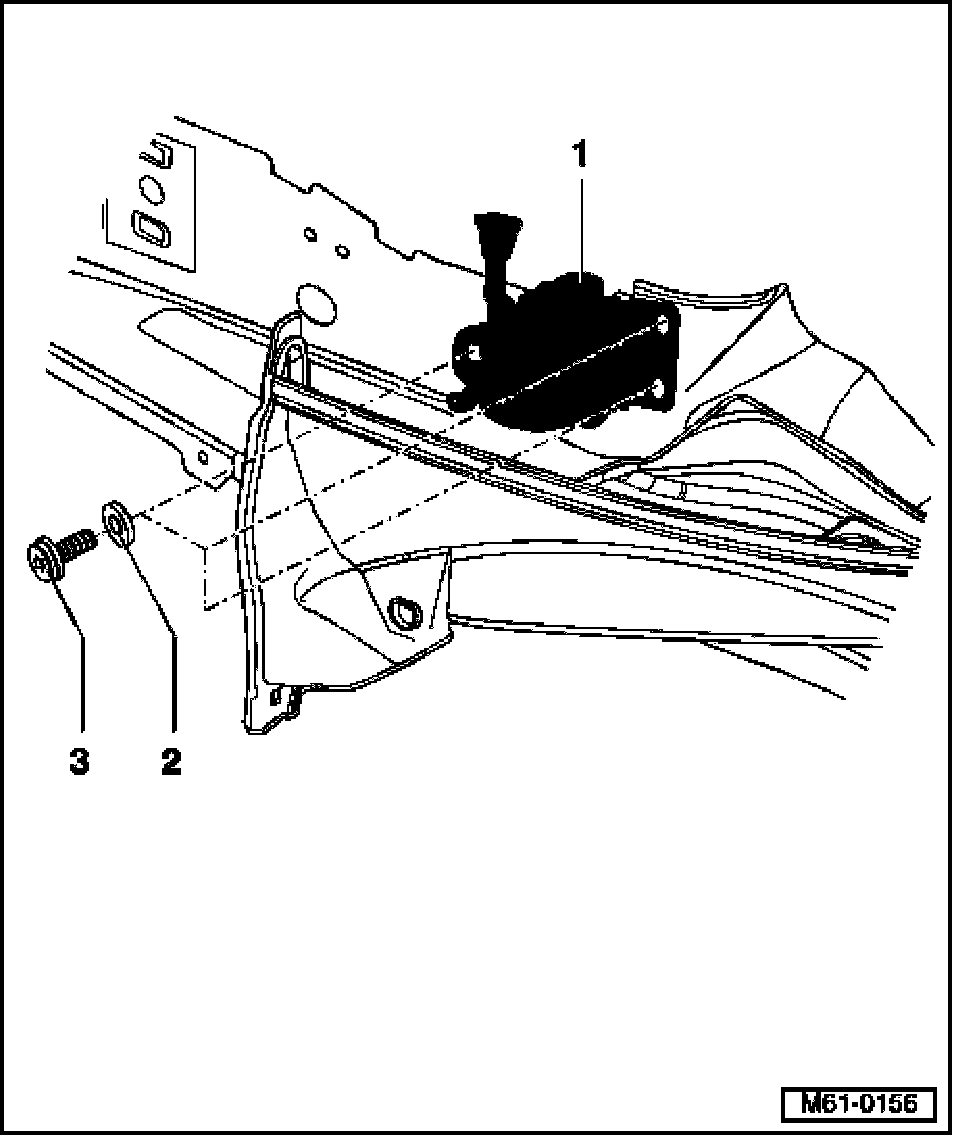

Rear Catch - Manual, Assembly Overview

Rear Catch - Manual, Assembly Overview







1. Convertible top latch, assembly
- Removing:
- Remove side trim panel.
- Open convertible top or work from inside of vehicle with top closed.
- Installing:
- Align module for convertible top catch.
- Close convertible top if decided to open it previously.
- Then perform functional check.
2. Washer
- Qty. 6
3. Bolts/screw
- 10 Nm
- Qty. 6
