Front Catch - Electro/Hydraulic and Manual, Removing and Installing

Convertible Top Front Catch - Electro/Hydraulic and Manual, Removing and Installing

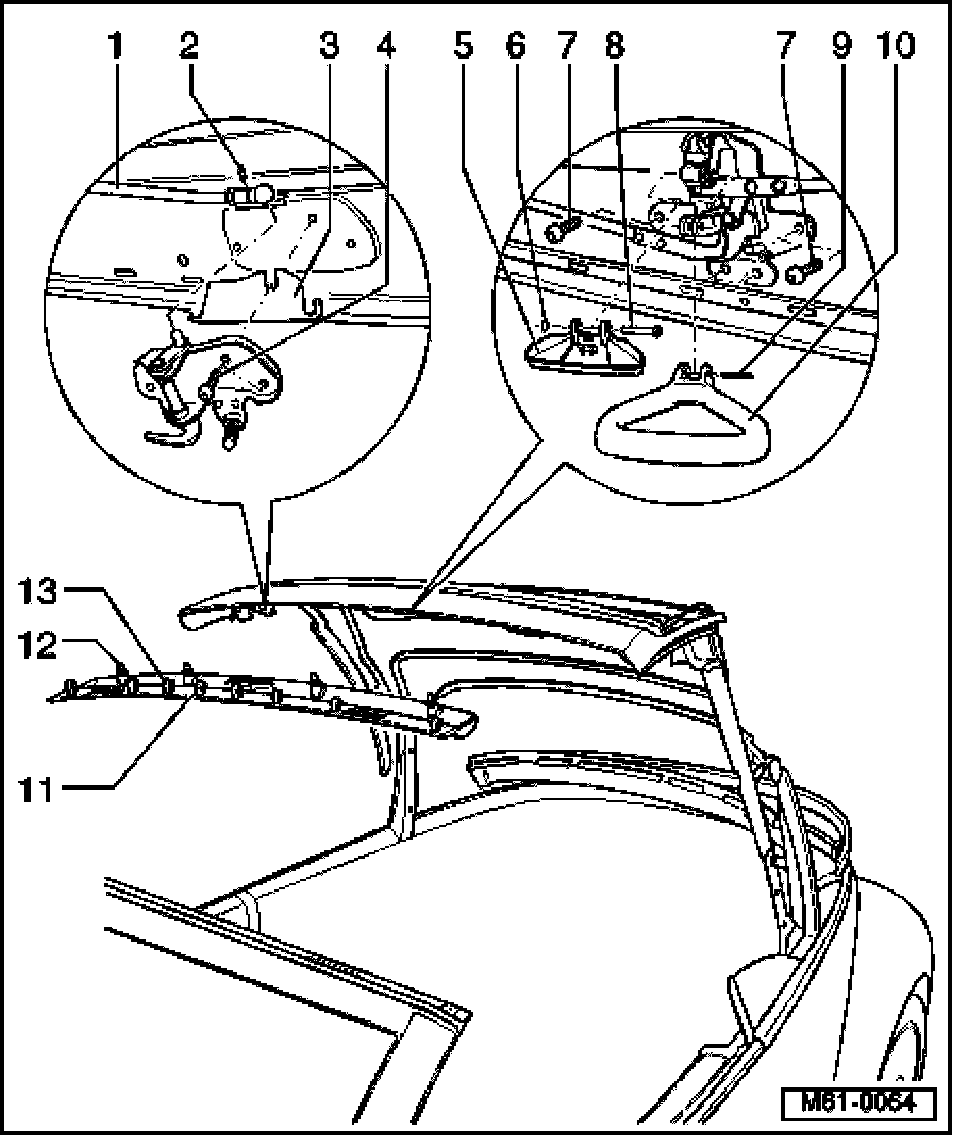

Removing
- Remove roof member cross member trim.
- Disconnect micro switch connector from right side.
- Remove bolt/screw - 6 -.

Installing
Installation is reverse of removal.

NOTE:
- Convertible top can be adjusted within elongated holes for convertible top catch - 5 -.
- Convertible top must lie centrally on roof cross member and lie evenly at A-pillars.
