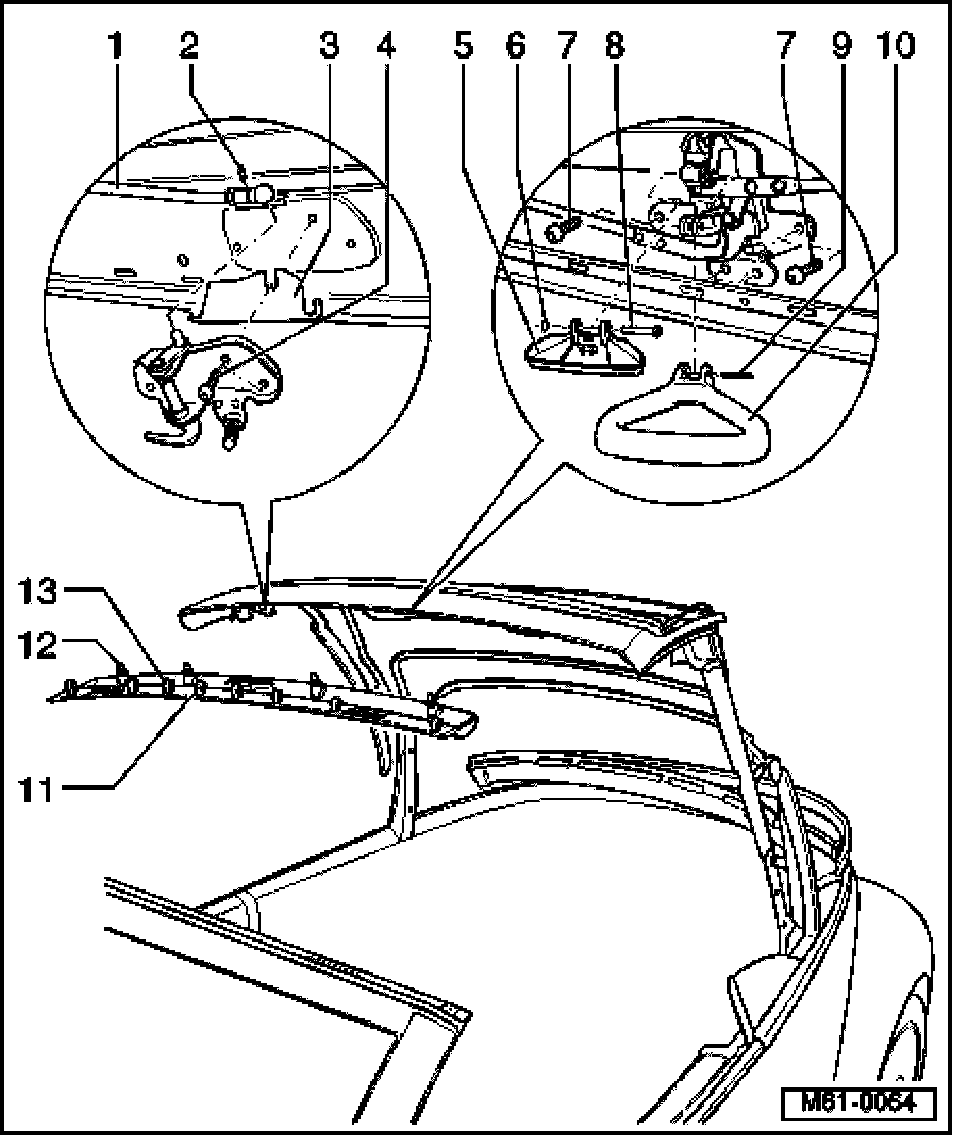

Front Latch - Electro/Hydraulic and Manual, Assembly Overview

Convertible Top Front Latch - Electro / Hydraulic and Manual, Assembly Overview







1. Rods
- Components - 1 -, - 2 -, - 3 - - 4 - conform Front retaining catch.
2. Circlip
- Components - 1 -, - 2 -, - 3 - - 4 - conform Front retaining catch.
3. Plate
- Components - 1 -, - 2 -, - 3 - - 4 - conform Front retaining catch.
4. Bolt/screw
- 10 Nm
- Components - 1 -, - 2 -, - 3 - - 4 - conform Front retaining catch.
5. Trim
- Removing:
- Remove circlip - 6 -.
- Remove pin - 8 -.
6. Circlip
7. Bolt/screw
- 10 Nm.
8. Pin
9. Bolt/screw
10. Handle
- Removing:
- Remove bolt/screw from side.
11. Clip
12. Clip
13. Roof leading edge trim
- Removing:
- Unclip front and rear.
- Turn through 90 degree and take off over handle - 10 -.
