Front Catch - Electro/Hydraulic and Manual, Assembly Overview

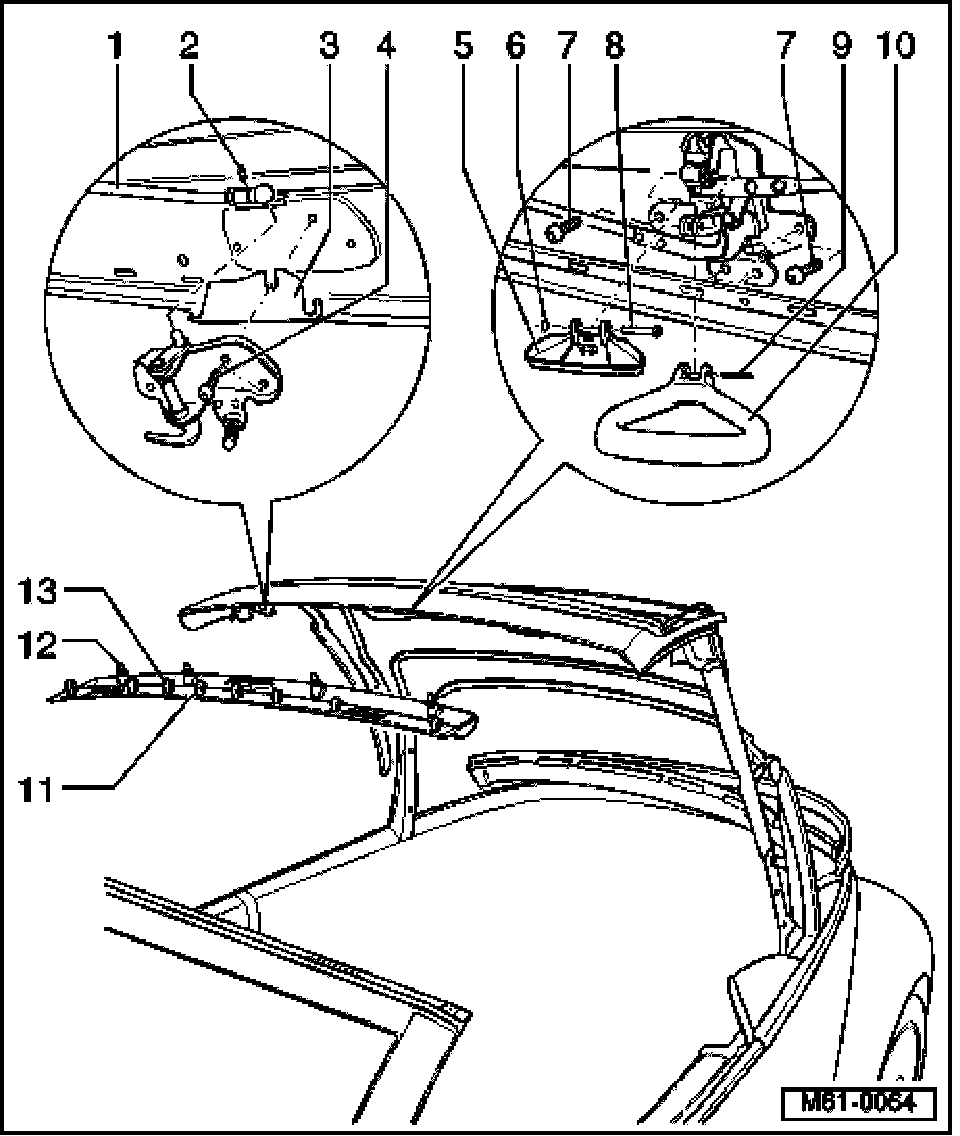

Convertible Top Front Catch - Electro/Hydraulic and Manual, Assembly Overview







1. Rods
2. Circlip
3. Plate
4. Bolt/screw
5. Convertible top press button
6. Circlip
7. Bolt/screw
- 10 Nm.
8. Pin
9. Pin
10. Handle
- Removing:
- Remove pin - 7 - and circlip - 6 - from side.
11. Clip
12. Clip
13. Roof leading edge trim
- Removing:
- Unclip front and rear
- Turn through 90 degree and remove over handle - 10 -.
