Convertible Top Frame: Service and Repair

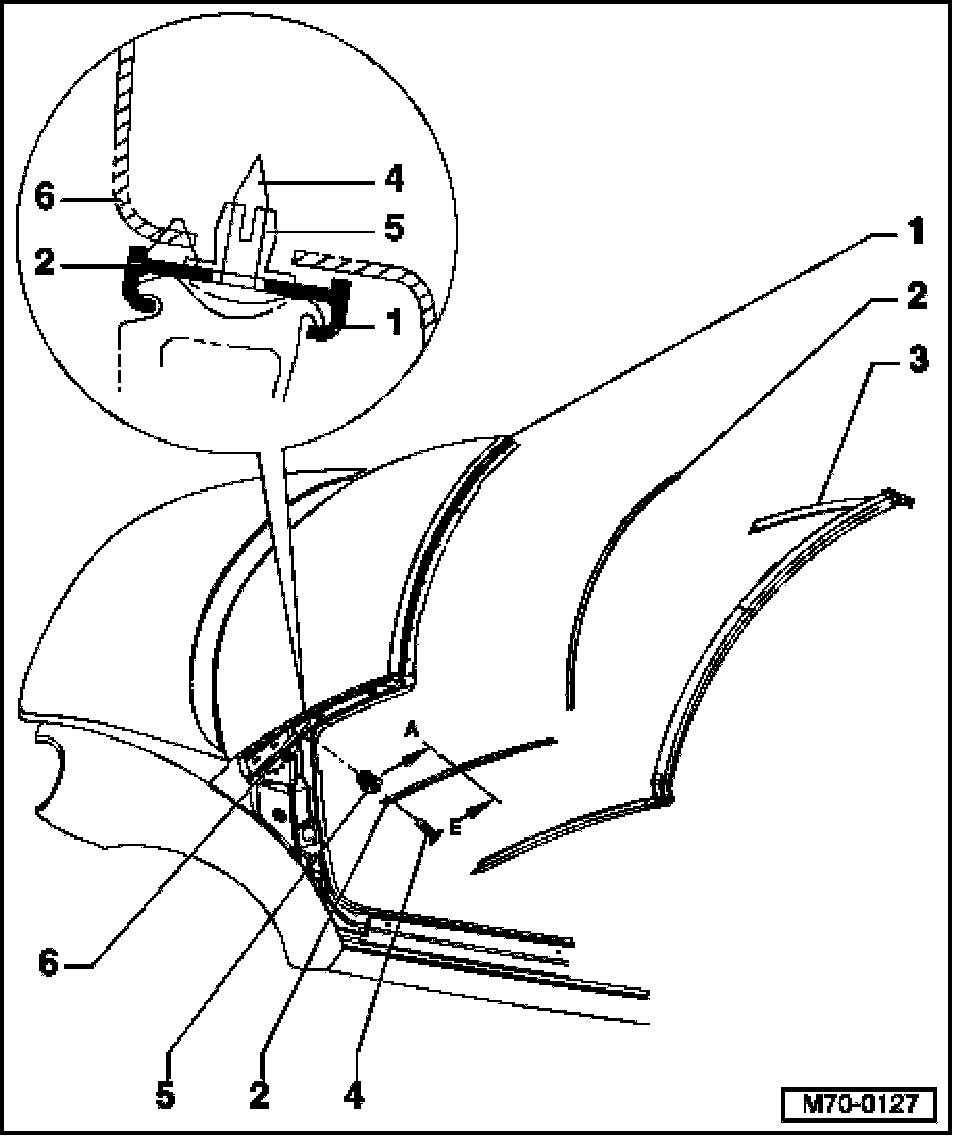

Windshield Frame - Electro/Hydraulic and Manual, Assembly Overview







1. Roof cross member
2. Retaining rail for seal
3. Roof cross member seal
4. Bolt/screw
- Qty. 15
5. Spreader nut
- Qty. 15
6. A-pillar
