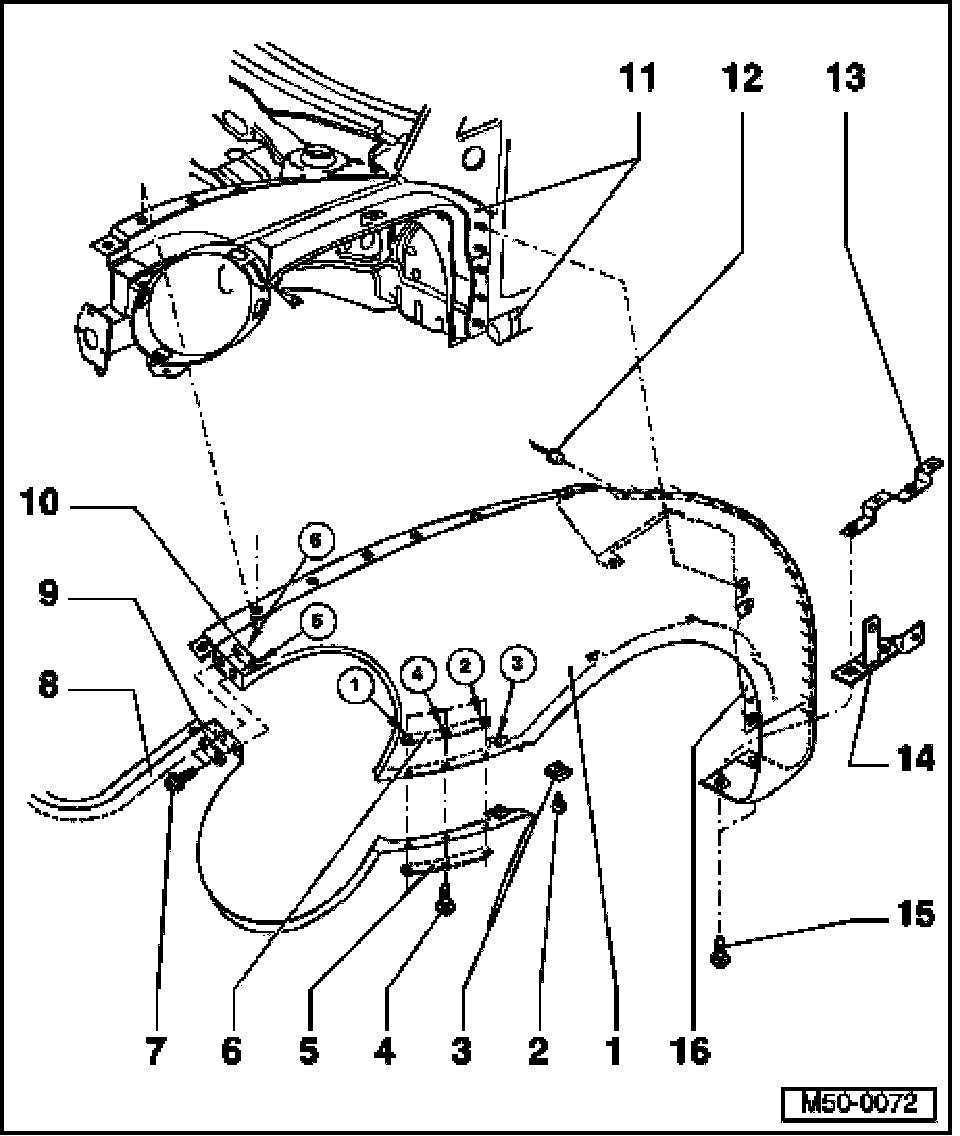

Front Fender, Assembly Overview

Front Fender, Assembly Overview

NOTE:
- The fenders are a part of the front part and must be removed together.
- Tightening sequence of the bolts/screws - 2 -, - 4 -, - 7 - must be observed to ensure conciseness of joints/shut lines etc.







1. Wing
- Removing:
- Removing front part.
- Installing:
2. Bolt
- Insert with locking fluid D 185 400 A2
- Note tightening sequence
3. Clip
4. Bolt
- Insert with locking fluid D 185 400 A2
- Qty. 3
- 6 Nm
- Note tightening sequence
5. Backing
6. Backing
- With welded captive nuts
7. Bolt
- Insert with locking fluid D 185 400 A2
- Qty. 2
- 6 Nm
- Note tightening sequence
8. Front bumper cover
9. Backing
- With holes
10. Backing
- With welded captive nuts
11. Anti-abrasive film
- Check condition, replace if necessary
12. Pop rivet
- Qty 19
13. Bracket (Convertible)
- Bolted to outside of side member
14. Bracket
- Bolted to outside of side member
15. Bolt
- Qty. 2
- 6 Nm
16. Sealing part
- Riveted into fender
