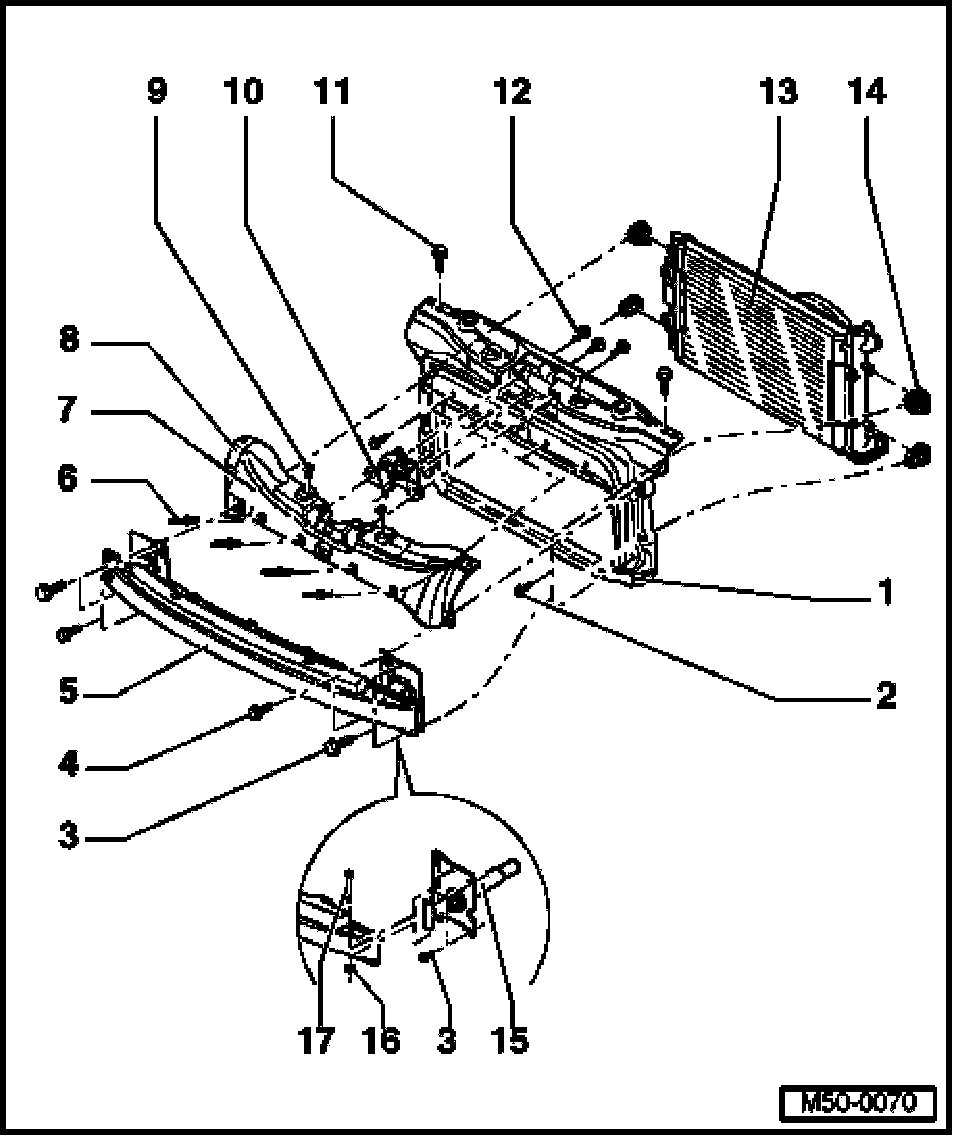

Lock Carrier, Assembly Overview

Lock Carrier, Assembly Overview







1. Lock carrier
- Removing:
- Removing front part.
- Unhook Bowden cable at lock and disconnect electrical connectors.
- Unbolt radiator and condenser from lock carrier.
- Secure radiator and condenser in engine compartment.

NOTE:
- Do not hang condenser up on its lines.
- Do not kink condenser lines.

- Remove lock carrier along with connecting plate and lock.
- Installing:
- Align lock carrier within elongated holes.
- Adjust headlights
2. Bolt
- Qty 4
- 6 Nm
- For radiator mounting
3. Bolt
- Qty 4
- Qty. 6 (USA)
- 30 Nm
4. Bolt
- Qty 4
- 9 Nm
5. Bumper carrier
- With insulation
6. Pop rivet
- Qty 4
7. Insulation
- Bonded with Butyl adhesive cord AKL 450 005 05
8. Union plate
- Secured to lock carrier with pop rivets
9. Pop rivet nut
- Qty. 2
10. Tailgate lock
11. Bolt
- 20 Nm
12. Hexagon bolt (self-locking)
- 12 Nm
- When reusing: clean bolt threads with a wire brush and nut threads with thread tap; coat bolt with locking fluid D 185 400 A2
13. Radiator and condenser
14. Radiator mounting
15. Impact damper (USA)
16. Nut (USA)
17. Bolt (USA)
