Small Flap Base, Removing and Installing

Small Flap Base, Removing and Installing

CAUTION:
- Before Removing or Installing Small flap base, first remove Flap module from Side panel.
- There is a risk of damaging painted Side panel parts.

Removing
- Remove Bowden cable.

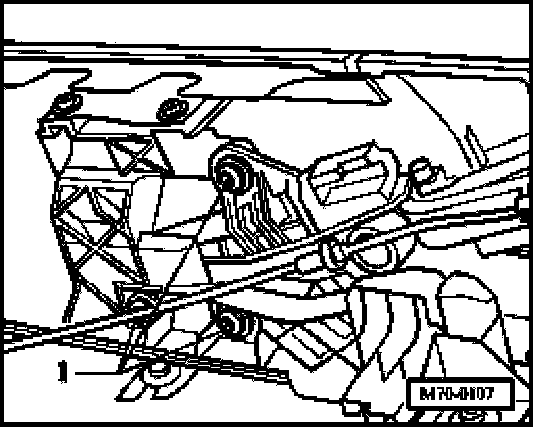

- Remove Torx screws -1- and separate form Flap module's main frame.

NOTE: These Torx screws are ones used to adjust clearances around small trims.

Installing
- Install in reverse order of removal.
